MCM 600 Municipal Sweeper
YOUR SPECIALIST MACHINE FOR DUSTY ENVIRONMENTS.
The MCM 600 is the ideal choice for businesses requiring high-performance sweeping in applications such as urban and suburban areas, and even industrial plants such as foundries, cement works or mining installations.
No matter the task, the MCM 600’s combined system with mechanical pick up/suction/filtration guarantees optimal performance without emitting dust particles into the environment.
Advantages of the MCM 600
The MCM 600 sweeper is the ultimate machine for all municipal applications. From the suburbs to dusty industrial facilities, the MCM 600 can meet even the most demanding tasks.
Operators can accurately and efficiently sweep trash, dirt, and dust to keep communities and facilities clean.
- Two-/three-brush system
- Easy maneuverability
- Dry sweeping and PM1-certified green filter
- Easy access for servicing
- Maximum sweeping accuracy, minimum wear and tear
- Control panel with color display
- User-friendly controls
- Fuel savings of up to 25 percent with Eco-mode
- Mechanical waste pick-up
- All-wheel steering
Ultimate Comfortability

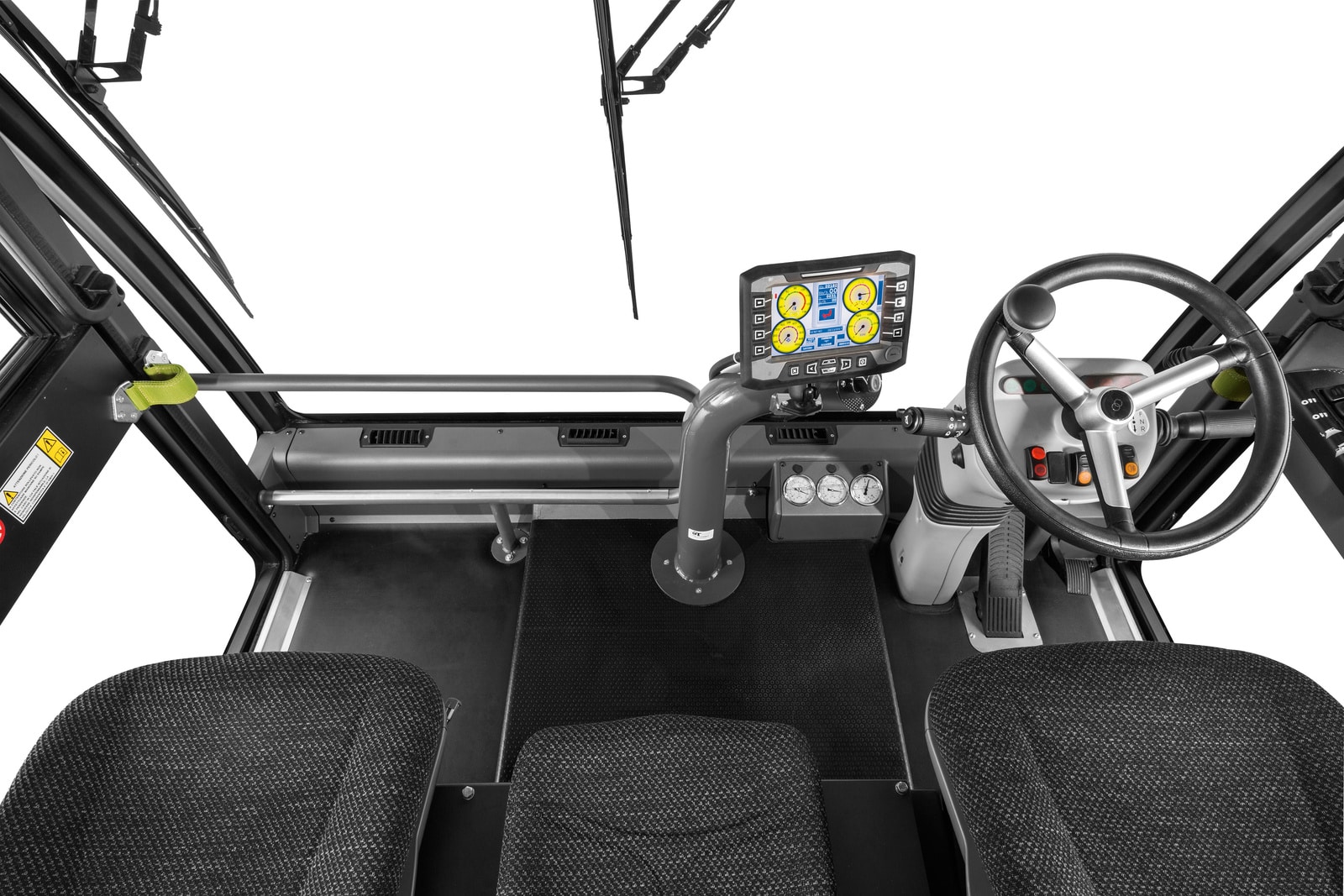

- Three-person, spacious cab
- Efficient ventilation and air conditioning system
- Adjustable armrests
- USB charging station
- Bottle holder and additional storage available
MCM 600 Applications for Municipalities
Bike Lane Maintenance
Road Maintenance
Irrigation
Green Area Maintenance
Dust Removal
Municipal Snow Removal
and many more
Watch The Kärcher Municipal Range in Action
Customize Your MCM 600 Machine
The Americhem team will work with you to customize your machine to your exact needs with the following optional add-ons.
High Rear Dump
- 95″
- 18,740 lbs. Payload

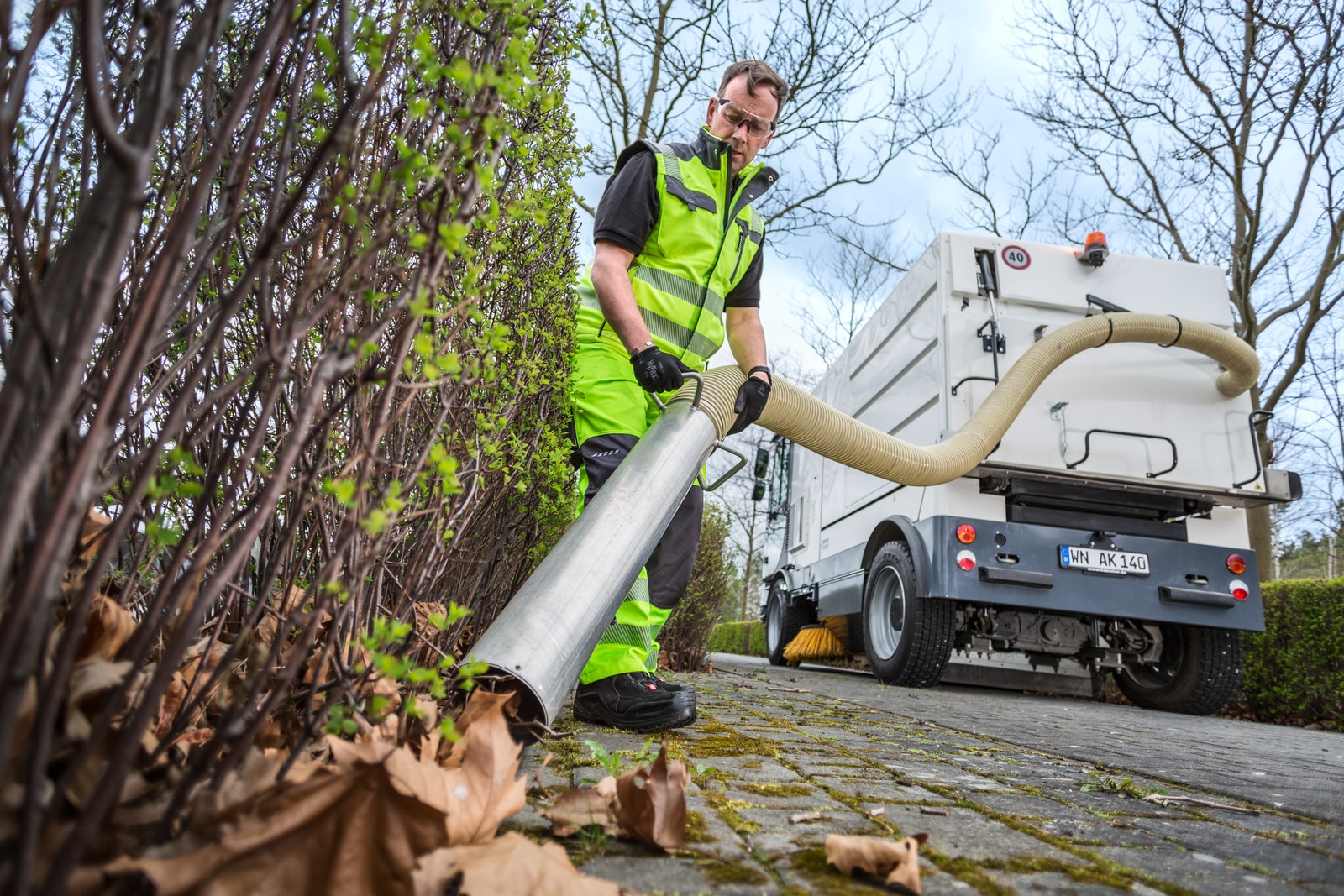

Wander Hose
- 19.8 ft Length
- 6″ Diameter
- Aluminum End
3rd Front Brush
- 49″ Diameter
- 142″ (11.8 ft) Sweeping Width
- Aluminum End
High Pressure Washer
- Pressure: 200 Bar (2900 PSI)
- Volume: 15 L/min (4 GPM)
- Hose Length: 36 ft
MCM 600 SPECS
| Technical Data | MCM 600 |
|---|---|
| Engine | Cummins four-cylinder engine (model F.38) |
| Drive type | Diesel |
| Power | 156 HP (115 kW) |
| Emission standard | Tier 4 Final |
| Diesel particulate filter | Yes |
| Fuel tank | 52.8 gal (200 l) |
| Steering | Four-wheel steering |
| Speed | 27 mph (40 km/h) |
| Climbing ability | 25 % |
| Brakes | Hydrostatic braking system + front and rear hydraulic disc brakes |
| Container capacity | 7.8 cu. yd. (6 m³) |
| Standard emptying height | 53” (1,340 mm) |
| High dump option | 94” (2,400 mm) |
| Hopper liner | Stainless steel |
| Standard fresh water tank | 132 gal (500 l) |
| Mounted water tank option | Additional 264 gal (1,000 l) |
| Tires | 295/60 R22.5 |
| Front suspension | Leaf spring suspension |
| Rear suspension | Hydraulic self-leveling |
| Hydraulic reservoir | 31.7 gal (120 l) |
| Voltage | 24 volt system |
| Unladen/tare weight (empty) | 18,298 lb (8,300 kg) |
| Total permissible weight | 28,660 lb (13,000 kg) |
| Axle load | 10,362 lb (4,700 kg) |
| Dimensions (L × W × H) | 233” x 83” x 116” (5,924 mm x 2,115 mm x 2,940 mm) |
| Turning radius (inside | outside) | 8.99’ (2.74 m) | 15.94’ (4.86 m) |
| Brush material | Polypropylene - steel wire |
| Working width (2-brush-system) | 102” (2,600 mm) |
| Area performance (2-brush-system) | 52,000 m²/h @ working speed of 12.4 mph (20 km/h) |
| Working width (3-brush-system) | 142” (3,600 mm) |
| Area performance (3-brush-system) | 72,000 m²/h @ working speed of 12.4 mph (20 km/h) |
