Holder C 70
Articulating Tractor
STRONG. NARROW. INGENIOUS.
The Holder C 70’s combination of high power transmission and pavement-compatible vehicle width is ideal for any application in municipal services and facilities management.
This machine offers all of the expected industry advantages: outstanding maneuverability, directional stability, work, and operating comfort.
Advantages of the HOLDER C 70
The C 70 articulating tractor is a comprehensive machine for your municipal needs, with a massive array of compatible attachments.
This machine was built with boundless traction and climbing capabilities, so even the most treacherous of landscapes won’t stop you.
Take on any application you can think of. From street cleaning, to winter services to greenery maintenance, the C 70 can do it all.
- Three attachment points
- Mechanical front power take-off
- Mechanical differential lock
- Attachment quick-change system
- Hydraulic wheel load balancing
- Optional rear power lift
- Electronic load limit control
- Three-dimensional front lift with 2,425 lbs. lifting force
- Low fuel consumption
- Tanks accessible on both sides for easy cleaning & service access

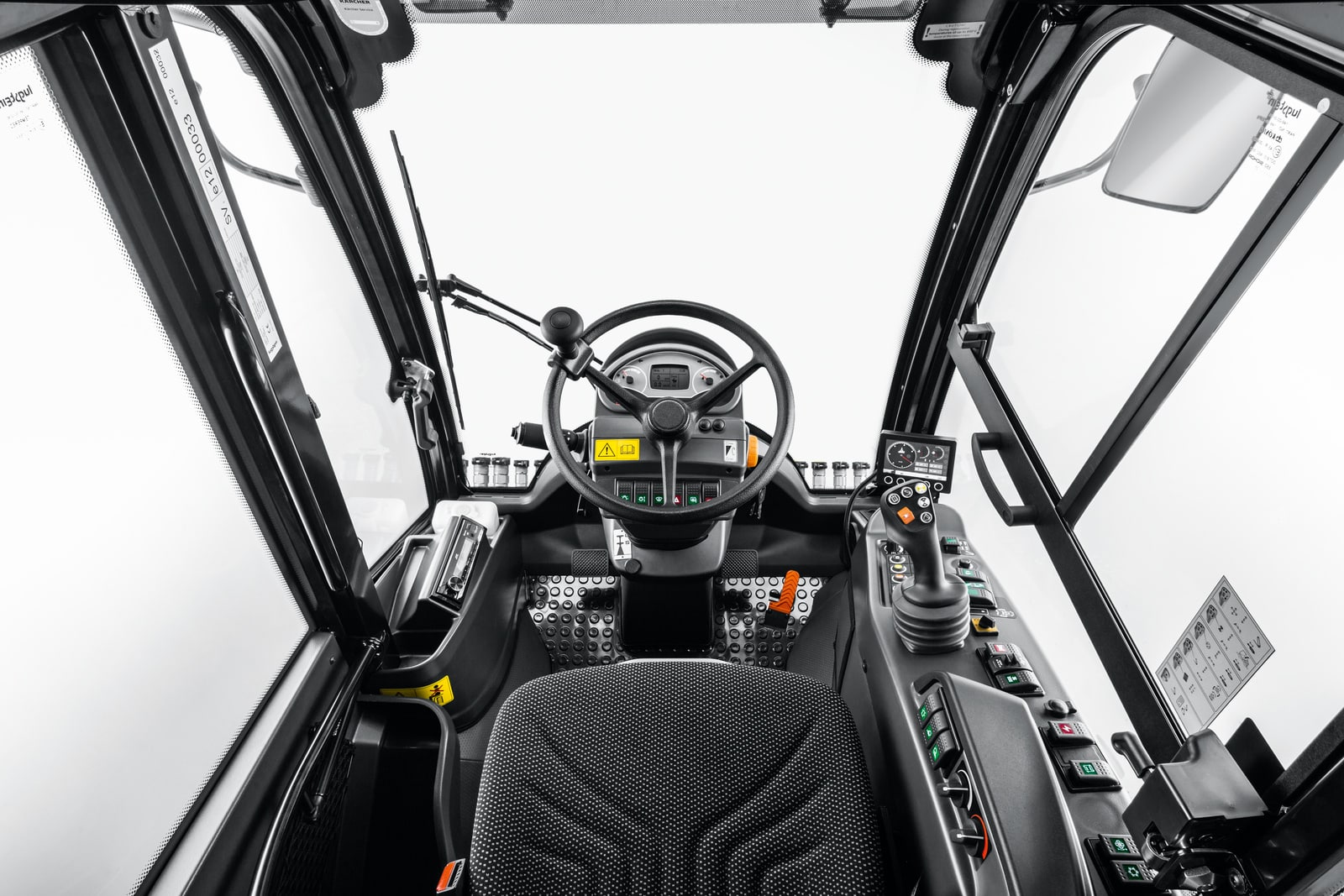

All Season Comfort
- Two-person cab
- Air-conditioning and heating for all seasons
- 360° unobstructed panoramic view
- Doors on both sides for safe entry and exit
- Deluxe comfort seat
Watch The Holder C 70 in Action
Summer Holder C 70 Tractor Attachments
With over 130 different attachments, the Holder C 70 can be your one stop shop for all your municipal cleaning needs.
Wood Chipper
Features 360° adjustable chute, adjustable ski base, dual active rollers and more.
Skidding Winch
Features 2 choker chains, 2 key hole sliders, tow bar, trailer hitch and more.
Hot Water Weed Killer
Kills the parts of the weeds above ground and the roots below with hot water.
Spray Bar
Expedite watering projects by giving operators the flexibility to adjust the spray bar height.
Stump Grinder
Features flow control cutting pass speed, bolt-on teeth design and heavy duty stabilizer base.
Winter Holder C 70 Tractor Attachments
Holder C 70 Specs
| Technical Data | Holder C 70 |
|---|---|
| Engine | Kubota four-cylinder four-stroke turbo diesel |
| Power | 48 kW (65 HP) |
| Max torque | 225 Nm (165 lbf·ft) @ 2,400 rpm |
| Cubic capacity | 2,615 cm³ |
| Emission standard | Tier 4 Final |
| Fuel tank | 65 l (17 gal) |
| Drive | Hydrostatic drive, infinitely variable speed control, suspended front and rear axle; PowerDrive via four wheels of the same size |
| Speed (driving) | 0–40 km/h (0–25 mph) fast gear; 0–20 km/h (0–25 mph) slow gear |
| Speed (working) | 0–15 km/h (0–9 mph) fast gear; 0–8 km/h (0–5 mph) slow gear |
| Differential lock | Front and rear mechanical with 100% locking effect |
| Service brake | Four-wheel hydraulic drum brake |
| Parking brake | Electro-mechanical parking brake active on front axle |
| Front PTO shaft | 540 rpm at 2,200 rpm engine speed |
| Hydraulic flow divider | 11 gpm (43.5 l/min) @ 2,611 psi (180 bar); 0–9 gpm (0–35 l/min) for implements, cab-controlled |
| Volume flow of implement pump | 0–21 gpm (0–80 l/min) @ 4,061 psi (280 bar); 0–18 gpm (0–70 l/min) for implements, cab-controlled |
| Hydraulic control units | Up to 3 double-acting control units |
| Hydraulic couplings | Up to 3 pairs at the front / 2 pairs at the rear |
| Hydraulic tank | 37 l (9.7 gal) with fill level sensor |
| Front power lift | CAT I, double-acting with floating position and vibration damping; optional electro-hydraulic release; hydraulic side/incline adjustment |
| Lifting force (front) | 1,100 kg (2,425 lb) |
| Unladen weight | 1,928 kg (4,250 lb) |
| Total permissible weight | 3,500 kg (7,715 lb) |
| Permissible axle load | Front: 2,300 kg (5,070 lb) | Rear: 2,300 kg (5,070 lb) |
| Towing capacity | Unbraked: 1,500 kg (3,310 lb); Overrun braked: 3,500 kg (7,715 lb) |
| Wheelbase | 1,827 mm (72") |
| Total length (incl. front power lift) | 2,928 mm (115") |
| Total height | 2,260 mm (89") |
| Total outer width | 1,170 mm (46") |
| Turning circle radius (outside) | 1,490 mm (59") |
