Karcher Municipal Sweeper and Articulating Tractor Attachments

There are over 130 different attachment combinations compatible with the below municipal equipment, meaning these machines can be your one stop shop for all your municipal cleaning needs. If you don’t see an attachment for your application below, contact the Americhem team or reach out to your Kärcher representative and we’ll make sure to find the right solution for you.

■ ROTARY MOWER DECK
■ TRI-DECK MOWER
■ FLAIL MOWER
■ TURBINE BLOWER
■ HEAVY DUTY MULCHER

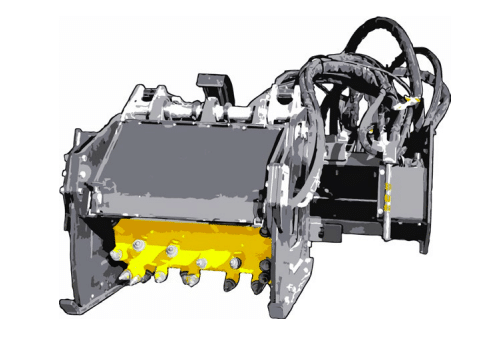

■ COLD PLANER

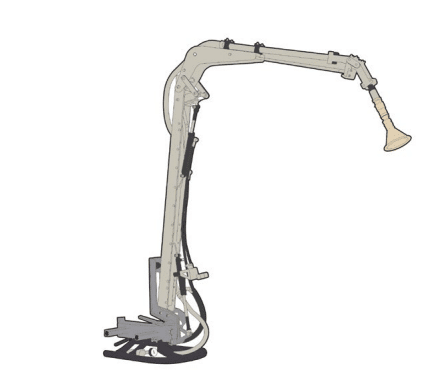

■ HYDRAULIC WATERING ARM

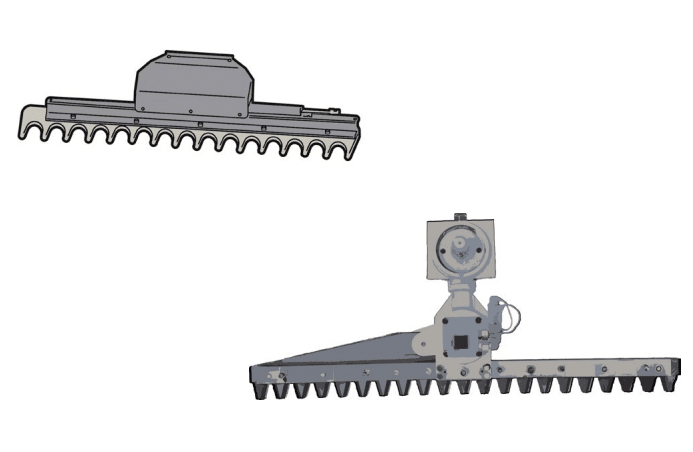

■ HYDRAULIC POWER ARM (BOOM ARM)

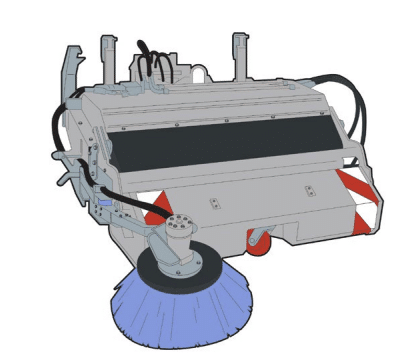

■ HYDRAULIC SWEEPER WITH PICK-UP
■ VACUUM SWEEPER
■ FORKLIFT & LOADER BUCKET

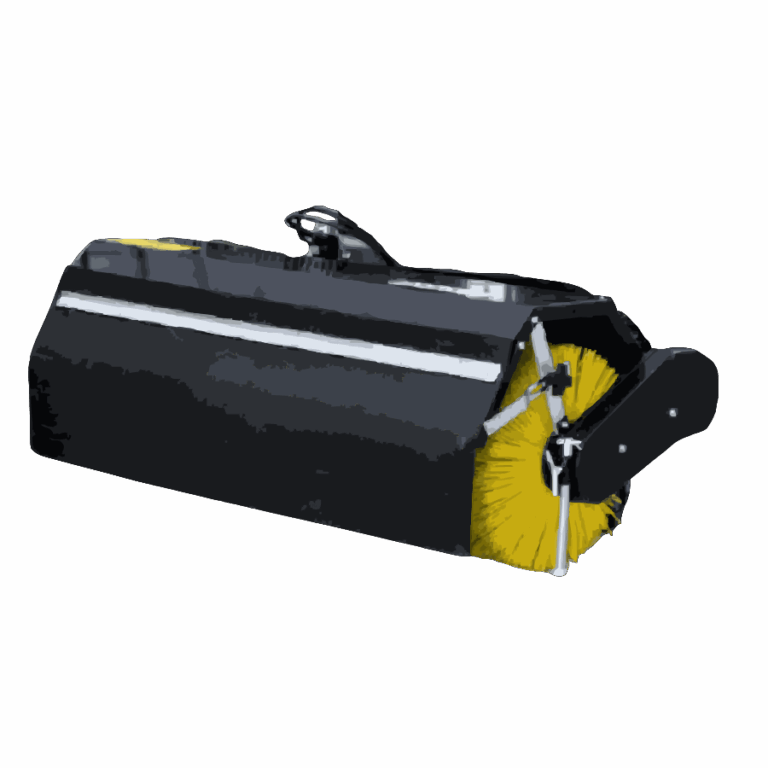

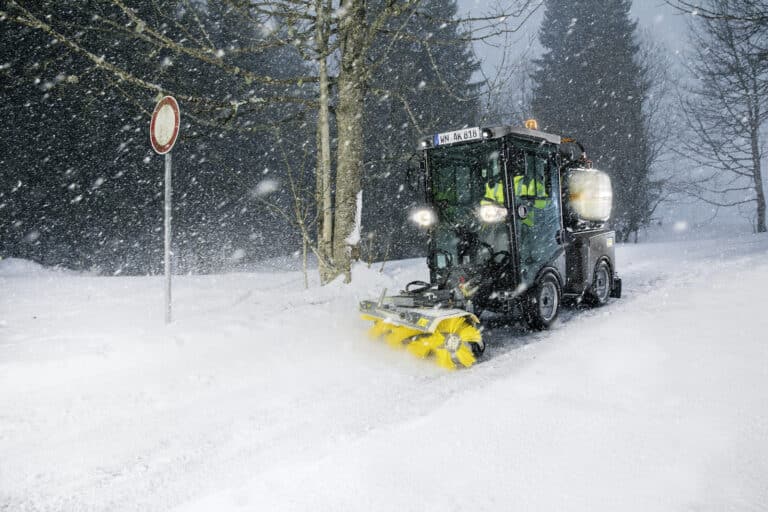

■ FRONT ROLLER BRUSH
■ WEED BRUSH

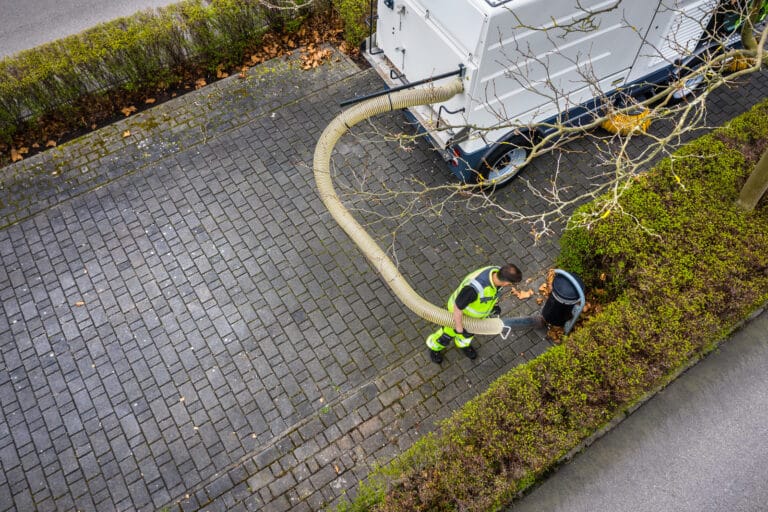

■ MANUAL SUCTION HOSE
■ SCRUBBING DEVICE

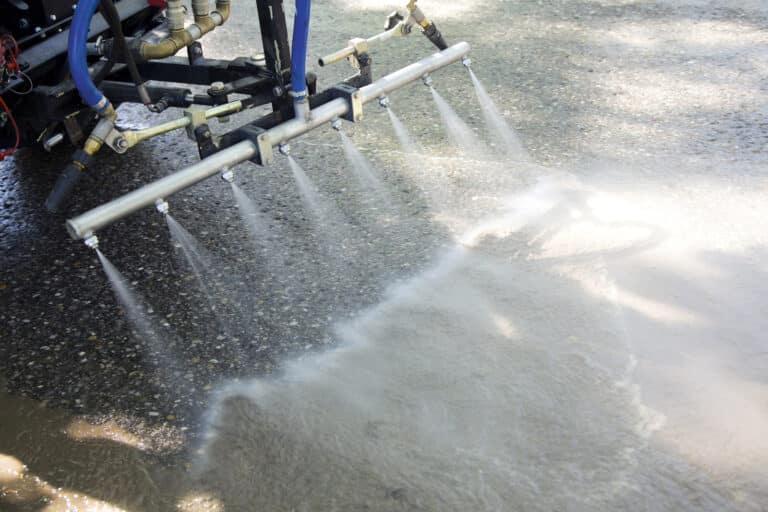

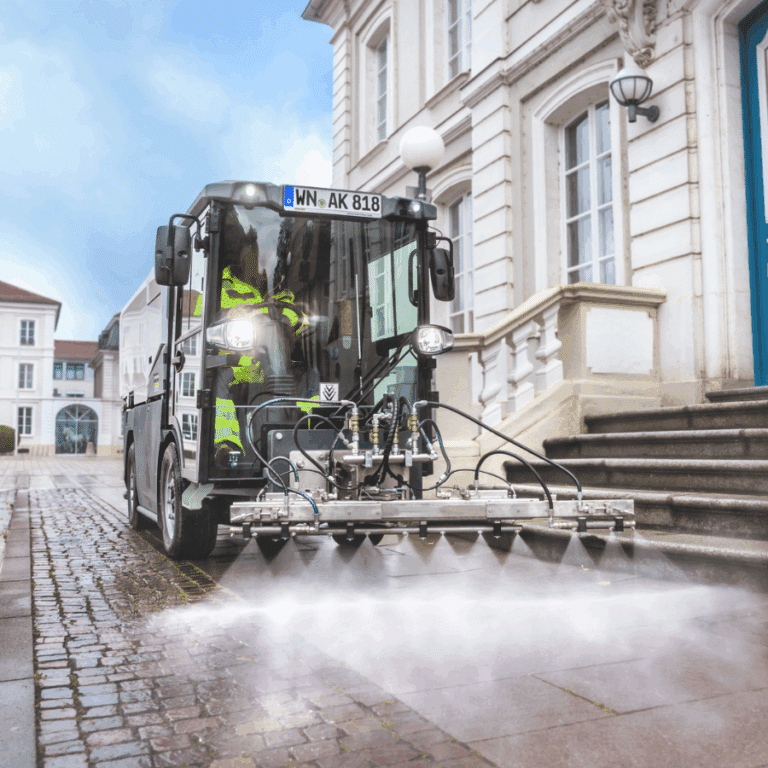

■ WASHING SYSTEM

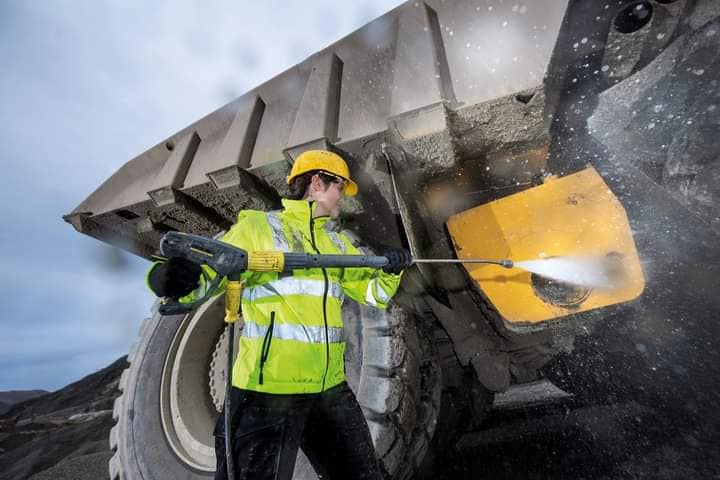

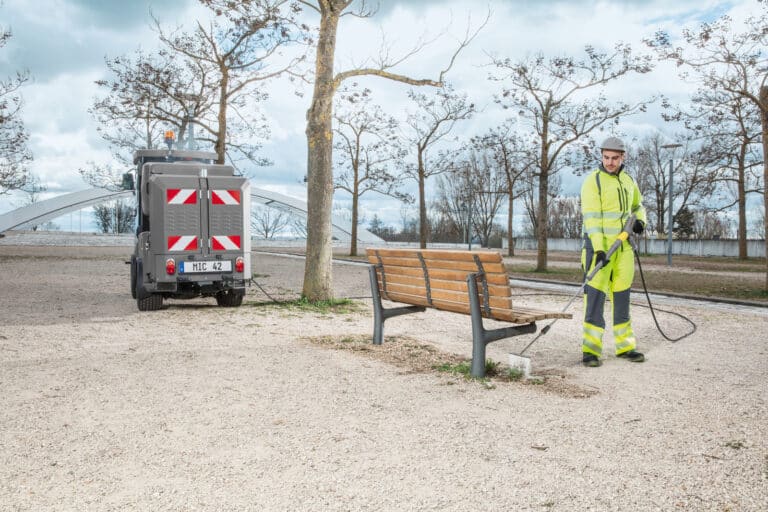

■ PRESSURE WASHER CLEANER

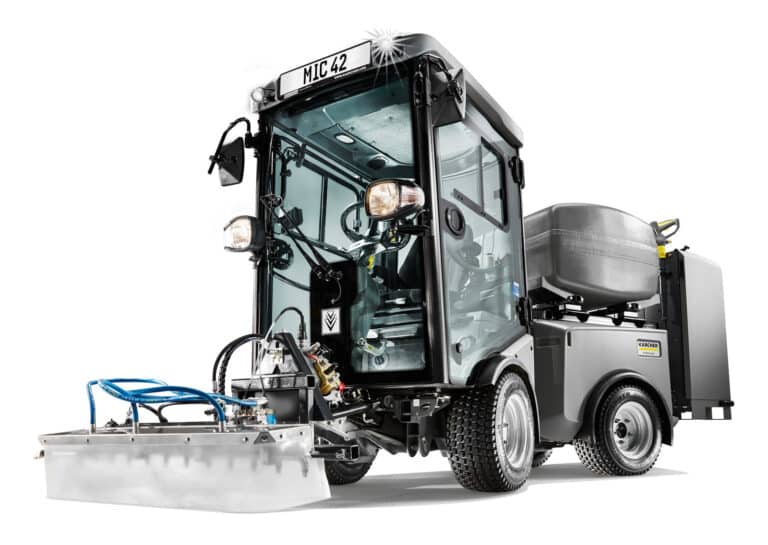

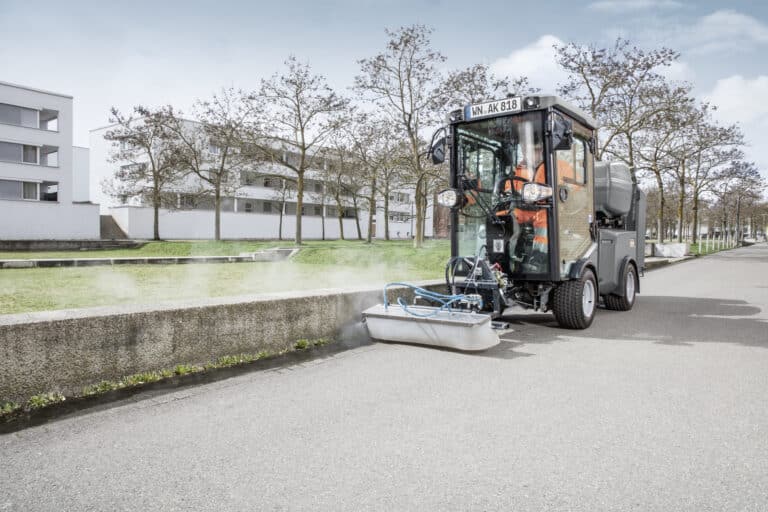

■ HOT WATER WEED KILLER
■ SWEEPING CONTAINER
■ ALL

All Season Attachments

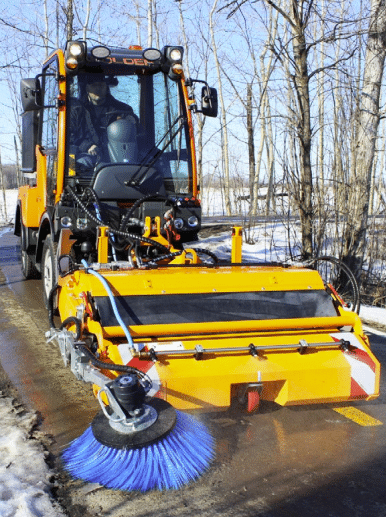

HYDRAULIC SWEEPER

Sweep like a professional. Ensure perfect sweeping results in both summer and winter, with this compact hydraulic sweeper.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Adjustable broom cover
■ Only for SCD-059-01: castor wheel

Available Options:
■ Only for SCD-059-01: wet kit (spray nozzles
electrical pump) (regular water tank is required)

Tractor Requirements:
■ CAT I (3-point hitch)
■ 1 set of hydraulic quick couplers (double acting)
■ Only for SCD-059-01: CAT II (in addition)

Technical Data	SDC-055-01	SDC-059-01
Total Width	57” (1,447 mm)	61” (1,550 mm)
Clearing Width Straight	55” (1,400 mm)	59” (1,500 mm)
Clearing Width Angled	59” (1,500 mm) at 26°	63” (1,600 mm) at 32°
Turning Angle (L/R)	26°	32°
Oscillation	No	18°
Transport Height	29” (735 mm)	41” (1,050 mm)
Brush Diameter	22” (550 mm)	24” (600 mm)
Brush Material	Polypropylene
Weight	260 lb (118 kg)	529 lb (240 kg)
Torque to the Shaft	147 lb*f (200 Nm)	479 lb*f (650 Nm)
Power Requirements	Flow divider 1 or high flow pump 6.6 gpm (25 l/min)	High flow pump 10 gpm (40 l/min)

Technical Data	SDC-055-01	SDC-059-01
Tractor Fit (Holder)	C70 – C270 – S75	C70 – C270 – S75 – S100

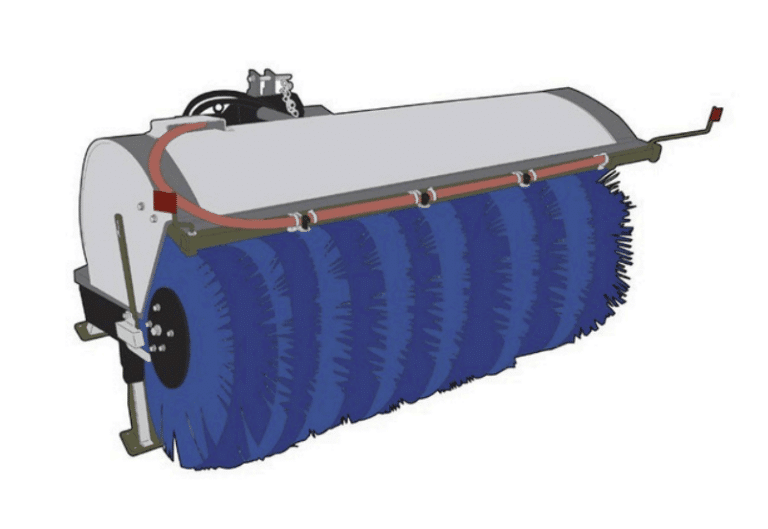

PTO DRIVEN SWEEPER

Sweep in any season. This versatile sweeper is ideal in any situation. Effortlessly sweep away gravel, dirt, snow and other debris.

Standard Features:
■ PU cowling
■ Parking legs
■ Poly steel combination brushes
■ Water spray bar
■ Water pump
■ Adapter plate for wheel kit

Available Options:
■ Stainless steel or steel cowling
■ Wheel kit
■ Hydraulic driven models available

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)

Technical Data	SPT-048-02	SPT-060-02	SPT-072-02
Total Width	53” (1,346 mm)	65” (1,651 mm)	77” (1,955 mm)
Clearing Width Straight	48” (1,219 mm)	60” (1,524 mm)	72” (1,828 mm)
Clearing Width Angled 30°	42” (1,066 mm)	52” (1,320 mm)	62” (1,574 mm)
Height	38” (965 mm)
Brush Diameter	32” (812 mm)
Swing Angle	30°
Drive Assembly	Side Drive via Gearbox & Chain
Type	Mechanical
Weight	685 lb (310 kg)	780 lb (353 kg)	860 lb (390 kg)
Power Requirements	40 HP (30 kW)
Tractor Fit (Holder)	C70 – C270	C70 – C270 – C992 – S75 – S100 – S130	C992 – S75 – S100 – S130

Technical Data	SPT-048-02	SPT-060-02	SPT-072-02
Tractor Fit (Holder)	C70 – C270	C70 – C270 – S75 – S100 – S130	S75 – S100 – S130

Karcher fresh water tank attachments for municipal sweepers and articulating tractors

WATER TANKS

Whether you’re sweeping and cleaning, watering greenery, or de-icing, these water tanks will allow you to accomplish any of those tasks. Transport water, brine, liquid de-icer, and more with ease.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features (WTA-100-01):
■ Hose connections

Mounting Options (WTA-100-01):
■ In the dump body (frame required)
■ On the platform (frame required)

Frame Options (WTA-100-01:
■ WTF-100-01 (dump body mount)
■ WTF-100-02 (platform mount)

Tractor Requirements (WTA-100-01):
■ Over engine platform or in the dump body

Standard Features (WTA-175-01):
■ Hose connections
■ Platform mount

Mounting Options (WTA-175-01):
■ On the platform only

Tractor Requirements (WTA-175-01):
■ Over engine platform

MODEL	WTA-100-01	WTA-150-01
TOTAL VOLUME	100 gal (440 L)	150 gal (568 L)
LENGTH	38” (965 mm)	48” (1219 mm)
WIDTH	30” (762 mm)	36” (914 mm)
HEIGHT	28” (711 mm)
MATERIAL	POLYETHYLENE
TRACTOR FIT (HOLDER)	C70 – C270	S75 – S100 – S130

MODEL	WTA-175-01	WTA-250-01
TOTAL VOLUME	175 gal (771 L)	250 gal (946 L)
LENGTH	52” (1321 mm)	64” (1626 mm)
WIDTH	40” (1016 mm)	46” (1168 mm)
HEIGHT	25” (635 mm)	32.5” (825 mm)
MATERIAL	POLYETHYLENE
TRACTOR FIT (HOLDER)	C70 – C270	S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

MODEL	WTA-100-01	WTA-150-01	WTA-175-01	WTA-250-01
TRACTOR FIT (HOLDER)	C70 – C270	C992 – S75 – S100 – S130	C70 – C270	S75 – S100 – S130

Summer Attachments

Landscaping & Lawn Care Applications

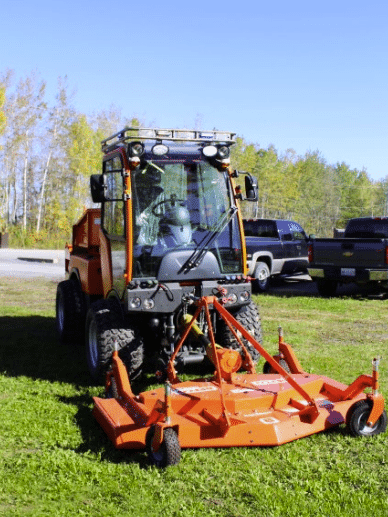

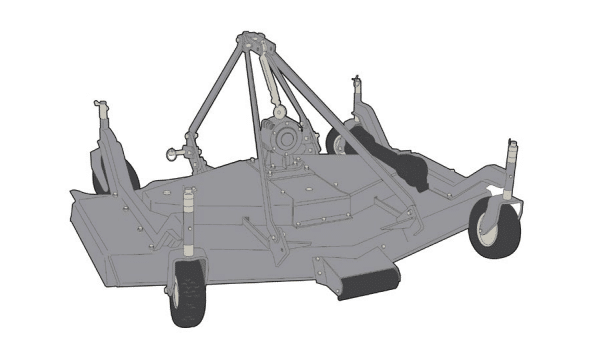

ROTARY MOWER DECK

Rotary mower decks, also known as grooming mowers, are designed for commercial mowing applications and are the ideal machines for landscapers, municipal parks, golf courses and other sports complexes.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Gearbox w/ spiral gears
■ Manual belt tensioning
■ Stamped steel reinforced wheel arms
■ Double belt transmission
■ Cast iron pulleys
■ Axial grease fittings
■ 8 gauge reinforced mower deck
■ Safety chain shield

Available Options:
■ Quick hitch adapter
■ Mulching kit
■ Front anti-scalp roller

Available Blade Options:
■ Standard blades
■ Low lift blades
■ High lift blades
■ Mulching blades

Tractor Requirements:
■ 540 RPM
■ CAT I (3-point hitch)
■ Front and rear mounting

Technical Data	MRT-060-01	MRT-072-01	MRT-084-01	MRT-090-01	MRT-110-01
Working Width	60” (1524 mm)	72” (1829 mm)	84” (2134 mm)	90” (2286 mm)	110” (2794 mm)
Overall Width	62” (1575 mm)	74” (1880 mm)	86” (2184 mm)	92” (2336 mm)	112” (2844 mm)
Weight	534 lb (242 kg)	584 lb (265 kg)	674 lb (306 kg)	1137 lb (515 kg)	1290 lb (585 kg)
Rotor RPM	3210	2605	2195	1750	1562
Blade Tip Speed	16,929 ft/min (5160 m/min)	16,732 ft/min (5100 m/min)	16,338 ft/min (4980 m/min)	14,106 ft/min (4299 m/min)	14,998 ft/min (4571 m/min)
Number of Blades	3			6
Cutting Height	1” – 5” (25 mm – 127 mm)			1.3” – 5.3” (33 mm – 134 mm)
Number of Belts & Type	2 SPBX			2 CX
Driveline	1 3/8” ASAE CAT 3			1 3/8” ASAE CAT 4
Tires	Pneumatic (4) 11” x 4” (279 mm x 101 mm)			Pneumatic (4) 13” x 6.5” (330 mm x 165 mm)
Gearbox	Spiral Gears w/ Cooling Fins
Power Requirements	20 HP – 50 HP (15 kW – 37 kW)	25 HP – 50 HP (18 kW – 37 kW)	30 HP – 50 HP (22 kW – 37 kW)	30 HP – 70 HP (22 kW – 52 kW)	40 HP – 70 HP (29 kW – 52 kW)
Tractor Fit (Holder)	C70 – C270			C992 – S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Technical Data	MRT-060-01	MRT-072-01	MRT-084-01	MRT-090-01	MRT-110-01
Tractor Fit (Holder)	C70 – C270	C70 – C270	C70 – C270	S75 – S100 – S130	S75 – S100 – S130

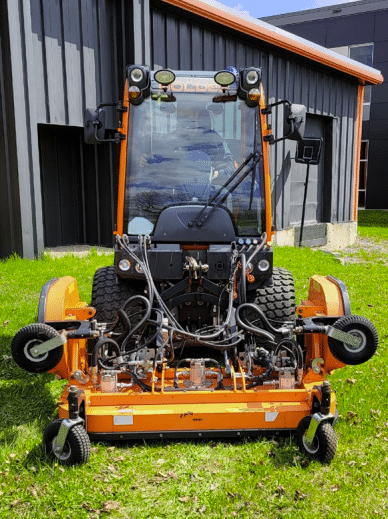

TRI-DECK MOWER

Tri-deck mowers, also known as finishing mowers, are ideal for residential and professional use alike.

Standard Features:
■ Mechanical tilt up
■ Cut 10° below level and 15° above (when floated)
■ Hydraulic transmission via direct drive
■ Automatic shut off on the side wings when raised more than 15” (400 mm)

Available Options:
■ Hydraulic tilt up
■ Mechanical main deck

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ High-flow pump
■ Counterweight
■ Turf tires
■ 2 sets of hydraulic quick couplings (double acting) w/ float mode

Technical Data	MTD-098-02	MTD-114-02	MTD-136-02	MTD-159-02
Largest Width	100” (2535 mm)	117” (2975 mm)	139” (3525 mm)	162” (4120 mm)
Transport Width	69” (1750 mm)	79” (2000 mm)	69” (1750 mm)	79” (2000 mm)
Largest Length	61” (1550 mm)	65” (1655 mm)	64” (1625 mm)	68” (1735 mm)
Largest Height	20” (500 mm)		24” (600 mm)
Transport Height	32” (820 mm)	36” (920 mm)	47” (1200 mm)	57” (1450 mm)
Cutting Width	98” (2480 mm)	114” (2900 mm)	136” (3460 mm)	158” (4025 mm)
Cutting Height	1” – 3” (30 mm – 80 mm)		1” – 3” (30 mm – 80 mm)
Necessary Flow	16 gal @ 3625 psi (60 L/min @ 250 bar)	18 gal @ 3625 psi (70 L/min @ 250 bar)	16 gal @ 3625 psi (80 L/min @ 250 bar)	18 gal @ 3625 psi (85 L/min @ 300 bar)
Number of Rotors	5		7
Number of Knives	5 x 21” (533 mm)	5 x 24” (620 mm)	7
Tires	Air Rubber Tires (6) 10” x 3”		Air Rubber Tires (8) 11” x 7” (279 mm x 177 mm)
Weight	804 lb (365 kg)	970 lb (440 kg)	1146 lb (520 kg)	1323 lb (600 kg)
Power Requirements	34 HP (25 kW)	41 HP (30 kW)	51 HP (37.5 kW)	56 HP (41.5 kW)
Tractor Fit (Holder)	C70 – C270	C70 – C270 – S75 – S100 – S130	S75 – S100 – S130	S75 – S100 – S130

Technical Data	MTD-098-02	MTD-114-02	MTD-136-02	MTD-159-02
Tractor Fit (Holder)	C70 – C270	C70 – C270 – S75 – S100 – S130	S75 – S100 – S130	S75 – S100 – S130

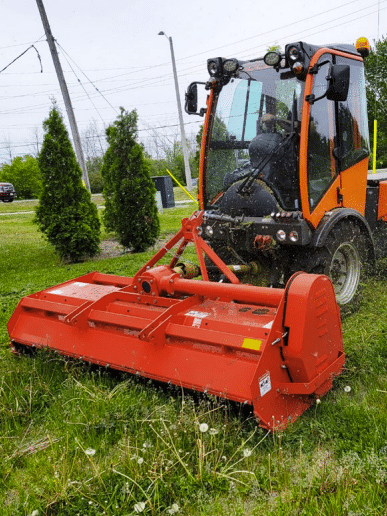

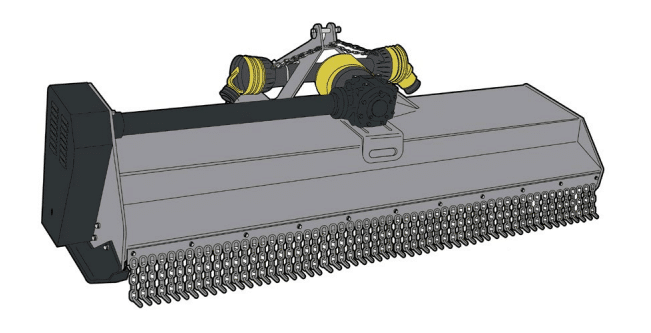

FLAIL MOWER

Flail mowers are perfect for roadside mowing and clearing recreational areas such as schoolyards and parks. This flail mower can be equipped with five different types of blades tailored to each operators needs.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Cast iron rotor supports
■ Belt shield fender
■ Replaceable side skids
■ Clockwise rotor rotation

Available options:
■ Gauge wheels
■ Front mount
■ Reverse rotation
■ Metal dust skirt

Available Blade Options (all factory installed):
■ Dethatching
■ Reverse “Y”
■ Triangular paddle
■ Hammer

Tractor Requirements:
■ 540 RPM
■ CAT I (3-point hitch)
■ Front and rear mounting

Technical Data	MFL-060-01	MFL-072-01	MFL-088-01	MFL-060-03	MFL-072-03
Working Width	60” (1524 mm)	72” (1829 mm)	88” (2235 mm)	60” (1524 mm)	72” (1829 mm)
Overall Width	71” (1803 mm)	85” (2159 mm)	99” (2515 mm)	69” (1752 mm)	81” (2057 mm)
Weight	869 lb (394 kg)	955 lb (433 kg)	1078 lb (489 kg)	1257 lb (570 kg)	1345 lb (610 kg)
Rotor RPM	2080			1961
Blade Tip Speed	8464 ft/min (2579 m/min)			8268 ft/min (2520 m/min)
Number of Blades	64	80	96	–	–
Number of Hammers	–	–	–	16	20
Cutting Height	3/4” – 6” (19 mm – 152 mm)			3/4” – 5” (19 mm – 127 mm)
Number of Belts & Type	2 CX			4 XPBX
Driveline	1 3/8” ASAE CAT 4 Overrunning Clutch			1 3/8” ASAE CAT 6 Overrunning Clutch
Hydraulic Side-Shift	–			12” (304 mm)	16” (406 mm)
Power Requirements	30 HP – 70 HP (22 kW – 52 kW)	35 HP – 70 HP (26 kW – 52 kW)	40 HP – 70 HP (30 kW – 52 kW)	40 HP – 80 HP (30 kW – 60 kW)	50 HP – 90 HP (37 kW – 67 kW)
Tractor Fit (Holder)	C70 – C270	C70 – C270 – S75 – S100 – S130	S100 – S130	S75 – S100 – S130	S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Model	MFL-060-01	MFL-072-01	MFL-088-01	MFL-060-03	MFL-072-03
Tractor Fit (Holder)	C70 – C270	C70 – C270 – S75 – S100 – S130	S100 – S130	S75 – S100 – S130	S75 – S100 – S130

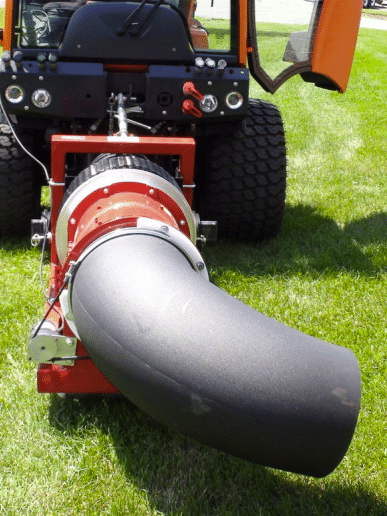

TURBINE BLOWER

Powerful and versatile. This turbine style PTO driven blower is ideal for clearing leaves, foliage and other debris. The turbine blower is equipped with a direct-drive gear box that greatly reduces daily and weekly maintenance.

Holder C70 Tractor

Standard Features:
■ Heavy duty steel construction
■ Direct drive gearbox
■ 360° nozzle control
■ Anti-scalping roller for soft surfaces
■ Plastic shielded telescopic PTO shaft
■ PTO shaft safety / retaining chain
■ Hitch pins & top link pin

Available Options:
■ Waterproof cover
■ Optional rectangular aluminum nozzle 10” (254 mm)
■ Optional rectangular aluminum nozzle 19” (483 mm)

Tractor Requirements:
■ 540 RPM

Technical Data	BDS-033-01
Total Length	63” (1,600 mm)
Total Width	22” (559 mm)
Total Height	24” (610 mm)
Weight	245 lb (111 kg)
Input Power	Direct drive gearbox
Input RPM	Use only @ 540 RPM PTO shaft speed max
Output RPM	Up to 3,780 RPM
Nozzle	Aerospace polymer nozzle
Outlet Size	Approx. 12” (305 mm)
Power Requirements	20 HP (15 kW)

Specification	BDS-033-01
Tractor Fit (Holder)	C70

HEAVY DUTY MULCHER

This light-weight, fixed-tooth masticating head brush mulcher will efficiently cut heavy vegetation and light brush using high speed teeth. The concave shaped carbide tip provides aggressive brush mulching action by chipping the brush bit by bit. Clear path widths up to 60”.

Holder S100/130 Tractor

Standard Features:
■ Integrated brush bar
■ Integrated skid shoes
■ High speed teeth
■ Spiral tooth pattern
■ Heavy duty gearbox
■ Reinforced belt
■ Powder coat
■ Wire protection kit
■ Slip clutch protection

Tractor Requirements:
■ CAT II (3-point hitch)

Technical Data	HDM-060-01
Path Width	60” (1524 mm)
Rotor Width	48” (1219 mm)
Cutting Style	High Speed Teeth
Number of Teeth	60
Rotor Shaft Size	2” (51 mm)
Rotor Diameter	15” (381 mm)
Weight	1050 lb (476 kg)
RPM	1800
Drive Speed	540 RPM
Power Requirements	25 HP – 50 HP (18 kW – 37 kW)
Tractor Fit (Holder)	S100 – S130

Technical Data	HDM-060-01
Tractor Fit (Holder)	S100 – S130

COLD PLANER

Cut asphalt and concrete with carbide teeth. This highly versatile cold planer is adaptable to a wide variety of job environments including road repair, landscaping, municipal, parking lots, and more. Hydraulic side-shift and depth control allows the operators to shift it up to 24” for maneuvering close to buildings and other obstacles.

Holder C70 Tractor

Standard Features:
■ Solid drum design
■ Right & left side skid shoes can be controlled
independently
■ Side-shift feature moves planer from left to right

Available Options:
■ Bolt-on rollers
■ Pistol grip control harness
■ Loader specific wire harness
■ Case drain coupler required
■ Factory installed couplers
■ Factory installed high flow couplers

Technical Data	CPH-024-01
Depth of Cut	0 – 6” (0 – 152 mm)
Width of Cut	24” (610 mm)
Number of Teeth	60
Standard Side-Shift	24” (610 mm) hydraulic
Tilt	16°
Weight	1,825 lb (828 kg)
Hydraulic Requirements	25 gpm @ 3,000 psi – 56 gpm @ 6,525 psi (95 l/min @ 207 bar – 212 l/min @ 450 bar)

Specification	CPH-024-01
Tractor Fit (Holder)	C70

HYDRAULIC WATERING ARM

Reach new heights with this hydraulic watering arm. Easily water flower beds, hanging baskets, trees and more. This watering arm’s ability to extend and articulate allow it to avoid and move around most obstacles such as park benches, guard rails, garbage cans, etc.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Flat sealing couplings
■ Electrical angling of the spraying head
■ Standard Holder joystick controls

Available Options:
■ FMC multimatic control box w/ joystick (WAR-161-02)
Tractor requirements:
■ CAT I | CAT II (3-point hitch)
■ 2 sets of hydraulic quick couplers (double acting)

Other Requirements:
■ Water tank system WTS-171-01 0R WTS-171-02

Technical Data	WAR-161-01
Working Height	161” (4100 mm)
Swivel Range (L/R)	250° (125° L/R)
Main Arm Tilt	55° Tilt
Secondary Arm Swivel	150° Swivel
Spraying Head Angling	170° Electrically Adjustable
Material (Both Arms)	Stainless Steel
Power Requirements	13 gpm (51 L/min)
Tractor Fit (Holder)	C270 – C70 – S75 – S100 – S130

Technical Data	WAR-161-01
Tractor Fit (Holder)	C270 – C70 – S75 – S100 – S130

Karcher hydraulic power arm attachment for municipal equipment

Karcher hydraulic power arm attachment for municipal equipment in use

HYDRAULIC POWER ARM (BOOM ARM)

Extend your capabilities with a power arm, also known as a boom arm. Equipping a flail head mower to this power arm enables you to reach less than ideal areas such as sloped hillsides, underneath guard rails, and more.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Tractor
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features (HMF-039-02):
■ Quick change system
■ Direct drive via axial piston engine
■ Support roller for cutting height regulation
■ Double stone guard at the front
(plastic baffle plates & chain guard)
■ Simple impact protection at the back (rubber apron)

Standard Features (PAR-157-02):
■ Hydraulic weight transfer
■ Flat sealing couplings
■ Hydraulic anti-crash protection
■ Holder mounting group
■ Quick change system for working tools

Available Options (PAR-157-02):
■ FMC multimatic control box w/ digital mouse

Tractor Requirements (PAR-157-02):
■ Counterweight

Specification	PAR-157-01	PAR-157-02	PAR-157-03
REACH FROM TRACTOR CENTER	157” (3988 mm)	157” (3988 mm)	157” (3988 mm)
OPERATION	HYDRAULIC – HI FLOW	HYDRAULIC – HI FLOW	1000 RPM – PTO DRIVEN
WEIGHT	approx. 639 lb (290 kg)	approx. 639 lb (290 kg)	approx. 639 lb (290 kg)
POWER REQUIREMENTS	3.96 gpm @ 2900 psi (15 L/min @ 200 bar)	3.96 gpm @ 2900 psi (15 L/min @ 200 bar)	3.96 gpm @ 2900 psi (15 L/min @ 200 bar)
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130

Specification	PAR-320-01
REACH FROM TRACTOR CENTER	128” (3251 mm)
OPERATION	HYDRAULIC
WEIGHT	1058 lb (480 kg)
POWER REQUIREMENTS	30 HP (22 kW)
OIL TANK CAPACITY	16 gal (62 L)
TRACTOR FIT (HOLDER)	C270 – C70 – C992 – S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Specification	PAR-157-01	PAR-157-02	PAR-157-03	PAR-320-01
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130	C270 – C70 – S75 – S100 – S130

HYDRAULIC SWEEPER WITH PICK-UP

Keep you bike paths and walkways clear with this side driven hydraulic sweeper. The additional pick up container is ideal for cleaning up leaves, twigs, stones, and other debris. Clearing width of 51”(1,300 mm) w/ pick-up container.

Holder C70 Tractor

Standard Features:
■ Broom w/ attached pick-up bucket
■ Flat-face couplings

Available Options:
■ Wet-kit on the basic sweeper and/or in the
pick-up container: spray nozzles, electrical pump
(regular water tank is required)

Available Options:
■ CAT I | CAT II (3-point hitch)
■ 2 sets of hydraulic quick couplers
■ Double acting; high-flow pump (10 gpm (40 l /min)
is required; counterweight

Technical Data	SPU-051-01
Total width	67” (1,700 mm)
Clearing width straight	51” (1,300 mm) w/ pick-up container
Clearing width angled 32°	45” (1,150 mm) w/out pick-up container
Working height	38” (860 mm)
Transport height	51” (1,305 mm)
Brush diameter	24” (600 mm)
Brush material	Polypropylene
Weight (base sweeper)	440 lb (200 kg)
Weight (max weight w/ all options)	738 lb (335 kg)

Specification	SPU-051-01
Tractor Fit (Holder)	C70

VACUUM SWEEPER

Easily convert your applicable Holder machines into a vacuum sweeper. Clean dust, pebbles, leaves and similar small debris from streets, bike paths, parking lots, and countless other areas. Increase your work output thanks to a 58 gallon (220 liter) freshwater tank.

Standard Features:
■ Robust aluminum container
■ Reduced noise output
■ Reduced fuel consumption
■ Rear view camera
■ Hand held suction hose

Available Options:
■ Right or left hand brush options are available as a weed brush w/ hydraulic inclination adjustment
■ Can be equipped with a hand washer that uses high-pressure water as a cleaning agent
■ Can be equipped with an electric valve control
on the suction mouth

MODEL	SVC-072-02	SVC-200-01
HOPPER (GROSS)	1.57 cu yard (1.2 m³)	2.1 cu yard (1.6 m³)
HOPPER (NET)	1.05 cu yard (0.8 m³)	1.56 cu yard (1.19 m³)
FRESH WATER TANK	58 gal (219 L)	74 gal (280 L)
RECYCLED WATER	approx. 40 gal (151 L)	up to 137 gal (518 L)
TOTAL HEIGHT	from 84” (2133 mm)	approx. 90” (2286 mm)
TOTAL OUTER WIDTH	from 44” (1117 mm)	approx. 63” (1600 mm)
PLATE BRUSH DIAMETER	33” (838 mm)
SWEEPING WIDTH SUCTION MOUTH	78” (1981 mm)
POWER REQUIREMENTS	45 HP – 74 HP (33 kW – 55 kW)	70 HP – 130 HP (52 kW – 97 kW)
TRACTOR FIT (HOLDER)	C70 – C270	S75 – S100 – S130

MODEL	SVC-072-02	SVC-200-01
TRACTOR FIT (HOLDER)	C70 – C270	S75 – S100 – S130

Karcher fork lift and loader bucket attachments for municipal equipment

Karcher fork lift and loader bucket attachments for municipal equipment in use

FORKLIFT & LOADER BUCKET

This forklift and loader bucket combination is a landscaper’s dream. Easily transport soil, building materials, yard waste and much more with this front loader setup. Bucket capacity of 0.3 cubic yards.

Holder S100/130 Tractor
Holder S75 Tractor
MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features (LOA-030-01):
■ Extremely robust bulk bucket for industrial
applications
■ Double hinge device for a minimum loss in
dump height
■ All rotating points have bearings
■ Round edge to prevent damage
■ Complete w/ hydraulic hoses and quick connectors

Standard Features (FKL-059-01):
■ Equipped w/ folding lines

Available Options (FKL-059-01):
■ 60” (1,524 mm) hose kits w/ pioneer couplings

Tractor Requirements (FKL-059-01):
■ CAT II
■ 2 sets of hydraulic quick couplers (double acting)

MODEL	FKL-059-01
LIFT CAPACITY	3500 lb (1587 kg)
LIFT HEIGHT	59” (1498 mm)
RETRACTED HEIGHT	65” (1651 mm)
TRACTOR FIT (HOLDER)	S75 – S100 – S130

MODEL	LOA-030-01
LENGTH OF FORKS	36” (914 mm)
WORKING HEIGHT	90” (2286 mm)
HEIGHT	42” (1066 mm)
BUCKET CAPACITY	0.3 cu yard (229 L)
TRACTOR FIT (HOLDER)	S75 – S100 – S130

MODEL	FKL-059-01	LOA-030-01
TRACTOR FIT (HOLDER)	S75 – S100 – S130	S75 – S100 – S130

Front Roller Brush

The front roller brush attachment aids in sweeping sand, dirt, and up to 4 inches of snow on roads. Available in 62 in and 78 in working widths.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Karcher weed brush with intake attachment for municipal equipment

Karcher weed brush with intake attachment for municipal equipment in use

Weed Brush (With and Without Intake)

All in one tool to easily remove and vacuum stubborn roadside weeds. Available with and without intake.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

4.5m Manual Suction Hose

This flexible hose aids in vacuuming light waste. Partner with the 132 gallon container for max efficiency.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Karcher street scrubbing attachment for municipal equipment

Karcher street scrubbing attachment for municipal equipment in use

Scrubbing Device

Ideal for removing stubborn dirt and grime from streets and sidewalks.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Karcher washing system attachment for municipal equipment

Karcher washing system attachment for municipal equipment in use

Washing Systems

Clean recreational areas and roads, or spread brine using a pressurized washing system. Available in compact, medium and large sizes.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Karcher pressure washer attachments for municipal equipment

Karcher pressure washer attachments for industrial applications

Karcher pressure washer attachments for stadiums

Karcher pressure washer attachments for parks

Pressure Washer Cleaner

Your solution to spot clean corners and small areas. Available with manual lance or high pressure cleaner attachments.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Sweeping Container

Work quickly when using compact, medium and large grass collection containers.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Winter Tractor Attachments

Snow & Ice Removal Applications

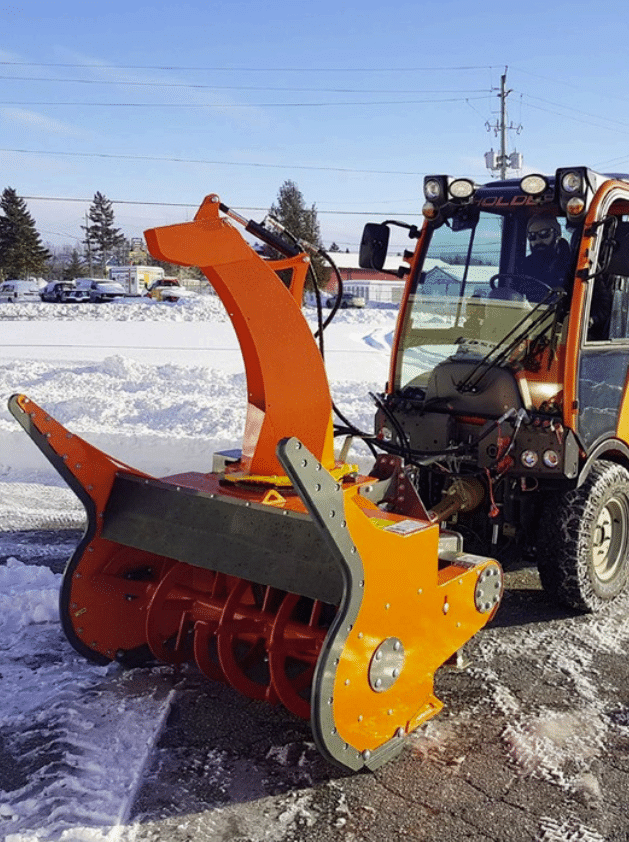

SINGLE AUGER BLOWER

The single auger blower is great at removing light to moderate snow. This blower can be operated safely and with ease. The direct-drive chute reduces the number of moving parts. The enclosed auger chain keeps dirt and debris out.

Holder C70 Tractor
MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Powder coated (orange/yellow)
■ 540/1000 rpm gearbox
■ Hardox cutting edge
■ Skid shoes

Available Options:
■ Truck load chute
■ Custom colors
■ Quick attach plate
■ Telescopic chute
■ Hardox chute
■ Hardox impeller
■ 4140 hardened adjustable skid shoes
■ Carbide cutting edge
■ Adjustable skid shoes (hardox)
■ Hydraulic options available
■ Custom sizes available

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)

Technical Data	BSA-051-01
Clearing width	50.25” (1,280 mm)
Overall width	52” (1,320 mm)
Overall height	77” (1,960 mm)
Weight	1,130 lb (513 kg)
Cutting auger diameter	19” (480 mm)
Impeller diameter	5 blades 24” x 9” (610 mm x 230 mm)
Oil requirements	11/25 gpm (45/95 l/min) for hydraulic version
Power requirements	40 HP (30 kW)

MODEL	BSA-051-01
TRACTOR FIT (HOLDER)	C70

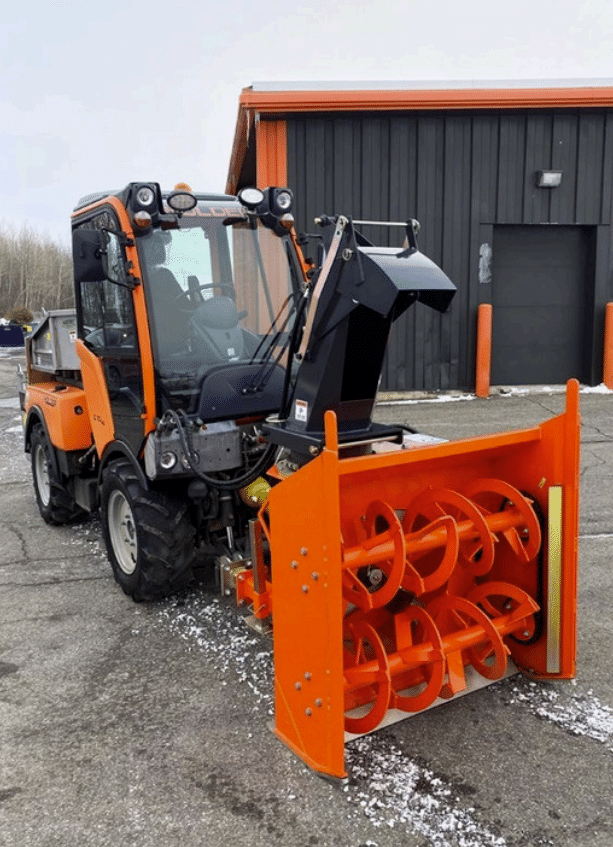

DOUBLE AUGER BOX BLOWER

The double auger box blower, also known as a twin auger box blower, is ideal for cutting through compact, hardened snow and ice. The quick disconnect chute makes it simple to clean and maintain.

Standard Features:
■ HQWRS cutting edges
■ HQWRS skid shoes
■ Ice breaker auger tips
■ Flat face couplings

Available Options:
■ 60” (1,524 mm) truck loading chute extension
■ For all BBX snowblowers (BCE-061-01)
■ Additional sizes available

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ 1 set of hydraulic quick couplers (double acting)
■ 1 3/8” – 6 spline PTO shaft 540 rpm
■ Counterweight

MODEL	BBX-044-01	BBX-050-01	BBX-060-01
TOTAL WIDTH	44” (1120 mm)	50” (1270 mm)	60” (1524 mm)
CLEARING WIDTH	44” (1120 mm)	50” (1270 mm)	60” (1524 mm)
TOTAL HEIGHT	76” (1930 mm)
HOUSING HEIGHT	39” (990 mm)
WEIGHT	760 lb (344 kg)	880 lb (399 kg)	1095 lb (496 kg)
CHUTE	HYDRAULIC w/ HYDRAULIC FLAP
CHUTE ROTATION	270°
DRIVE ASSEMBLY	SIDE DRIVE VIA GEARBOX & CHAIN
GEARBOX: 540 RPM & 1000 RPM	YES
OVERLOAD PROTECTION	SHEAR PINS
CUTTING AUGER DIAMETER	15” (381 mm)
IMPELLER DIAMETER	24” x 8” (609 mm x 203 mm)
NUMBER OF BLADES	3 (OPTIONAL 5)
POWER REQUIREMENTS	40 HP (30 kW)
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130

MODEL	BBX-044-01	BBX-050-01	BBX-060-01
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130

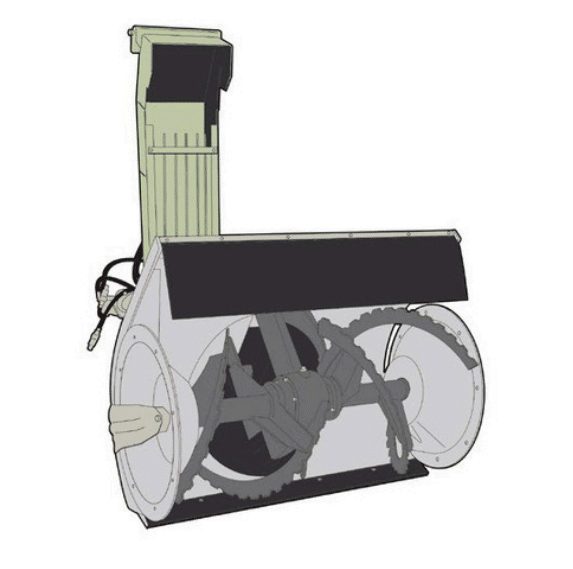

RIBBON BLOWER

The ribbon blower can effortlessly throw snow to great heights, whether you’re dealing with heavy wet snow or ice. The ribbon blower can also be customized with various chute options, including an extended chute and a telescopic chute.

Standard Features:
■ HQWRS cutting edges
■ HQWRS skid shoes
■ Wear resistant exchangeable plate insert in
the impeller housing
■ Flat face couplings

Available Options:
■ Hydraulic top link
■ 39” (1,000 mm) chute extension (BCE-039-01)
■ Truck loading chute w/ double flap (TLC-039-01)
■ Additional sizes available

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ 1 set of hydraulic quick couplers (double acting)
■ 1 3/8” – 6 spline PTO shaft 540 rpm
■ Counterweight

MODEL	BCD-051-03	BCD-059-02
TOTAL WIDTH	51” (1300 mm)	59” (1500 mm)
CLEARING WIDTH	51” (1300 mm)	59” (1500 mm)
TOTAL HEIGHT	82.6” (2100 mm)
HOUSING HEIGHT	35.4” (900 mm)
WEIGHT	992 lb (450 kg)	1091 lb (495 kg)
CHUTE	HYDRAULIC w/ 2 HYDRAULIC FLAPS
CHUTE ROTATION	210°
DRIVE ASSEMBLY	DIRECT DRIVE VIA GEAR BOX
OVERLOAD PROTECTION	A CAM-TYPE CUT-OUT CLUTCH BETWEEN AXLE GEAR & BLOWER WHEEL
PTO	SHEAR PIN
AUGER DIAMETER	25.6” (650 mm)	29.5” (750 mm)
IMPELLER DIAMETER	23.6” (600 mm)
NUMBER OF BLADES	5
POWER REQUIREMENTS	45 HP – 130 HP (33 kW – 95 kW)
TRACTOR FIT (HOLDER)	C70 – C270	C992 – S75 – S100 – S130

MODEL	BCD-051-03	BCD-059-02
TRACTOR FIT (HOLDER)	C70 – C270	S75 – S100 – S130

ANGLE PLOW

Whether you’re removing snow in downtown cores or in suburban areas the angle plow will clear the way. Keep your sidewalks and paths free of snow and ice. The angle plow comes with various cutting edge options including carbide, stainless steel and more.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ AR 400 steel cutting edge
■ Flat face couplings
■ Rubber deflector
■ Hydraulic angling

Available Options:
■ Extra lights
■ Warning flags
■ Castor wheels
■ Curb wear block
■ Additional sizes available

Available Cutting-Edge Options:
■ Hardox
■ Rubber
■ Vulkollan
■ Carbide
■ PU
■ Corundum
■ Stainless steel

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ 1 set of hydraulic quick couplers (double acting)

MODEL	PAN-050-10	PAN-055-10	PAN-058-10	PAN-060-10
TOTAL WIDTH	50” (1270 mm)	55” (1397 mm)	58” (1473 mm)	60” (1524 mm)
STRAIGHT CLEARING WIDTH	50” (1270 mm)	55” (1397 mm)	58” (1473 mm)	60” (1524 mm)
ANGLED 30°	43” (1092 mm)	47” (1193 mm)	50” (1270 mm)	52” (1320 mm)
HEIGHT	36” (920 mm)
MOULDBOARD HEIGHT	27” (680 mm)
MOULDBOARD THICKNESS	11 GAUGE
WEIGHT	525 lb (240 kg)	550 lb (250 kg)	564 lb (256 kg)	575 lb (261 kg)
NUMBER OF TRIP SECTIONS	2 x 30” (762 mm)
POWER REQUIREMENTS	40 HP – 93 HP (30 kW – 70 kW)
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

MODEL	PAN-050-10	PAN-055-10	PAN-058-10	PAN-060-10
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130

FOLDING V-PLOW

Easily navigate around garbage cans, lamp posts, fire hydrants and other obstacles while clearing snow. The ability to set the folding v-plow in up to five different positions provides the operator with more control and flexibility.

Holder S100 Tractor
Holder S75 Tractor
Holder C70 Tractor
MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Hardox cutting edge
■ Flat face hydraulic couplings
■ Powder coated
■ Hydraulic angling
■ Skid shoes
■ 5 positions

Available Options:
■ Extra lights
■ Warning flags
■ Castor wheels
■ Curb wear block
■ Additional sizes available

Available Cutting-Edge Options:
■ Stainless steel
■ Rubber
■ Vulkollan
■ Carbide
■ PU
■ Corundum
■ UHMW
■ Mild steel

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ 1 set of hydraulic quick couplers (double acting)

MODEL	PFO-055-01	PFO-061-01	PFO-066-01	PFO-071-01
TOTAL WIDTH	55” (1400 mm)	61” (1520 mm)	66” (1680 mm)	70” (1780 mm)
STRAIGHT CLEARING WIDTH	55” (1400 mm)	61” (1520 mm)	66” (1680 mm)	70” (1780 mm)
ANGLED 30°	48” (1220 mm)	52” (1320 mm)	58” (1470 mm)	61” (1550 mm)
HEIGHT	33.5” (851 mm)	33.5” (851 mm)	33.5” (851 mm)	33.5” (851 mm)
MOULDBOARD HEIGHT	30” (762 mm)	30” (762 mm)	30” (762 mm)	30” (762 mm)
MOULDBOARD THICKNESS	11 GAUGE	11 GAUGE	11 GAUGE	11 GAUGE
WEIGHT	519 lb (235 kg)	546 lb (248 kg)	573 lb (260 kg)	605 lb (275 kg)
POWER REQUIREMENTS	35 HP (26 kW)	40 HP (30 kW)	40 HP (30 kW)	60 HP (45 kW)
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130	S75 – S100 – S130

*Contact your Americhem representative for more details on what size to choose for your sweeper.

MODEL	PFO-055-01	PFO-061-01	PFO-066-01	PFO-071-01
TRACTOR FIT (HOLDER)	C70 – C270	C70 – C270 – S75 – S100 – S130	C70 – C270 – S75 – S100 – S130	S75 – S100 – S130

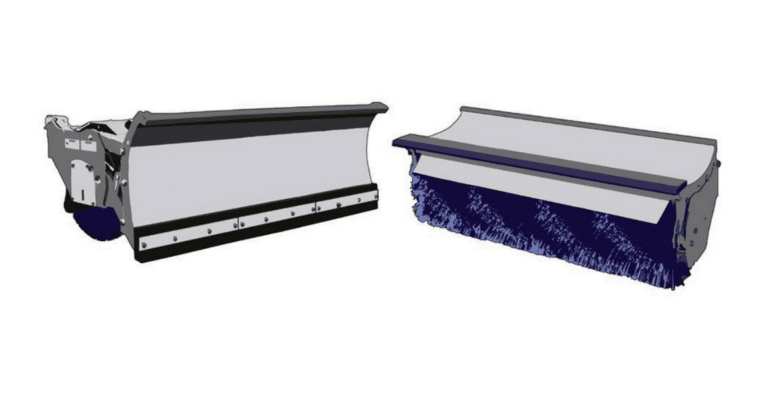

PLOW-BROOM COMBO

Should you sweep or plow your snow? Luckily with the plow broom combination attachment you don’t have to choose. This two-in-one feature allows you to easily switch between sweeping and plowing modes.

Holder C70 Tractor

Standard Features:
■ Adjustable speed
■ Mechanical collision protection
■ Maintenance-free drive motor
■ Rubber scraper blade

Available Options:
■ Polyurethane scraper blade
■ Sweeping rollers (summer-winter setup)
■ Water spray bar above the sweeping roller

Tractor Requirements:
■ CAT I | CAT II (3-point hitch)
■ Flow divider 0-6.6 gpm

Technical Data	PBC-063-01	PBC-078-01
Overall Length	47.25” (1,200 mm)	47.25” (1,200 mm)
Overall Width	63” (1,600 mm)	78.75” (2,000 mm)
Overall Height	32.50” (825 mm)	32.50” (825 mm)
Clearing Width (Straight)	63” (1,600 mm)	78.75” (2,000 mm)
Clearing Width (Angled 30°)	54.75” (1,390 mm)	68” (1,730 mm)
Sweeping Width (Straight)	55” (1,400 mm)	71” (1,800 mm)
Sweeping Width (Angled 30°)	50” (1,260 mm)	63” (1,600 mm)
Swivel Area	Approx. 32° left/right	Approx. 32° left/right
Weight	595 lb (370 kg)	992 lb (450 kg)
Oil Consumption	6.6 gpm (25 l/min)	6.6 gpm (25 l/min)

MODEL	PBC-063-01	PBC-078-01
TRACTOR FIT (HOLDER)	C70	C70

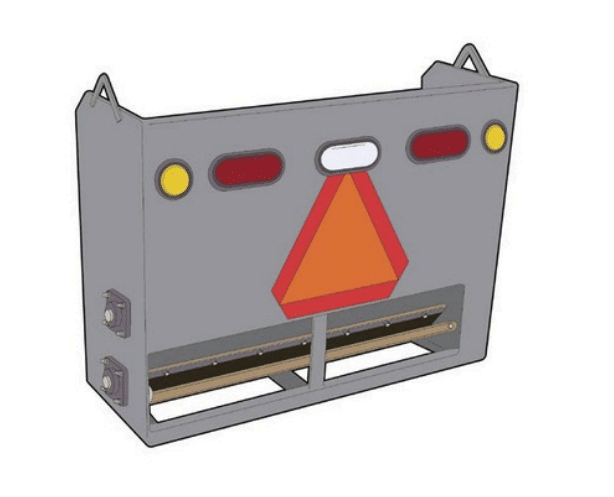

DROP SPREADER

This rear mounted drop spreader does not spray material, rather its intended purpose it to drop salt, sand, etc. directly in the path that it follows. Dropping these de icing materials allows the operator to distribute material in a more concentrated and consistent manner, ensuring a more accurate and even spread.

Standard Features:
■ Flat face couplings
■ HQWRS housing material
■ Stainless steel cams on the roll shaft
■ LED: brake lights, reverse lights & signal lights
■ Adjustable material flow rate

Available Options:
■ Stainless steel
■ Spill protector/enhancer
■ Tarp/cover
■ Support stand (set of 3) DSS-000-01

Tractor Requirements:
■ Rear bumper
■ Flow divider 1

Model	SAD-033-01	SAD-050-01	SAD-062-01	SAD-050-75
Capacity	0.33 cu yard (255 L)	0.5 cu yard (382 L)	0.62 cu yard (478 L)	0.33 cu yard (255 L)
Width	40” (1016 mm)	44” (1117 mm)	52” (1320 mm)	44” (1117 mm)
Length	15” (381 mm)	–	–	–
Height	30.5” (774 mm)	36” (914 mm)	37” (939 mm)	–
Weight	350 lb (159 kg)	430 lb (195 kg)	485 lb (220 kg)	380 lb (172 kg)
Depth	16” (406 mm)	22” (558 mm)	16” (406 mm)	–
Spreading Width	36” (914 mm)	40” (1016 mm)	48” (1219 mm)	40” (1016 mm)
Material Type	Salt – Sand – Mix	Salt – Sand – Mix	Salt – Sand – Mix	Salt – Sand – Mix
Power Requirements	40 HP (30 kW)	40 HP (30 kW)	40 HP (30 kW)	40 HP (30 kW)
Tractor Fit (Holder)	C70 – C270	C992	S100 – S130	S75

Model	SAD-033-01	SAD-050-01	SAD-062-01	SAD-050-75
Tractor Fit (Holder)	C70 – C270	C992	S100 – S130	S75

BROADCAST SPREADER

This rear mounted drop spreader does not spray material, rather its intended purpose it to drop salt, sand, etc. directly in the path that it follows. Dropping these de-icing materials allows the operator to distribute material in a more concentrated and consistent manner, ensuring a more accurate and even spread.

Holder C70 Tractor
MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

Standard Features:
■ Dry spreading system
■ Flat face couplings
■ Work light
■ Stainless steel spinner disc & agitator
■ Mesh screen
■ Foldable tarpaulin cover
■ Rear splash guard
■ Support legs w/ castor wheels

Available Options:
■ Pre-wet module
■ Additional beacon light
■ Rear camera

Multimatic Digital Control Box:
■ Dosage
■ Spraying width
■ Hours counter
■ Daily logs
■ Material & distance counter
■ Service functions

Tractor Requirements:
■ Over-engine platform
■ High-flow pump (minimum 13 gpm (50 l/min) is
required)

Models	SAB-085-01
Hopper Volume	0.85 cu yard (0.65 m³)
Delivery Method	Auger w/ Agitator
Spreading Method	Adjustable Spinner Disc
Spreading Width	3’ – 19’ (1 m – 8 m)
Spreading Dosage	5-250 g / m² w/ 5g / m² step
Spinner Disc	Stainless Steel ø 25” (647 mm)
Mounted Height	+/- 76” (1930 mm) (Depending on Tires)
Weight (Empty)	992 lb (450 kg)
Material Type	Salt – Sand – Grit
Power Requirements	45 HP – 74 HP (33 kW – 55 kW)
Tractor Fit (Holder)	C70 – C270

Models	SAB-085-01
Tractor Fit (Holder)	C70 – C270

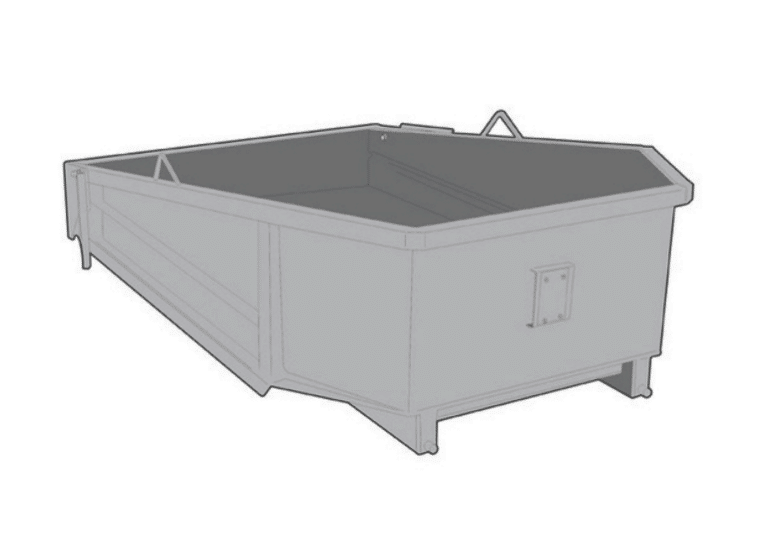

DUMP BODY

Transport materials, tools, equipment, and more, safely and efficiently with the over-engine dump body. This custom fitted dump body was designed specifically to work with the rear-mounted drop spreader. Carry more material, stay out longer by minimizing the need to restock and greatly reduce downtime.

Standard Features:
■ 11-gauge steel
■ Tapered side walls
■ Removable tailgate
■ Powder coated
■ HQWRS housing material

Available Options:
■ Stainless steel
Tractor requirements:
■ Over-engine platform

Specification	DBO-033-01	DBO-100-02	DBO-100-100	DBO-100-75
Width	38” (965 mm)	42” (1066 mm)	50” (1270 mm)	45” (1143 mm)
Length	46.5” (1181 mm)	63” (1600 mm)	68” (1727 mm)	68” (1727 mm)
Height Tapered Front – Rear	22.5” (571 mm)	20” (508 mm)	22” (558 mm)	23” (584 mm)
Weight	230 lb (104 kg)	295 lb (133 kg)	315 lb (143 kg)	305 lb (138 kg)
Capacity	0.33 cu yard (252 L)	1 cu yard (765 L)	1.1 cu yard (841 L)	1 cu yard (765 L)
Tractor Fit (Holder)	C70 – C270	C992	S100 – S130	S75

Specification	DBO-033-01	DBO-100-02	DBO-100-100	DBO-100-75
Tractor Fit (Holder)	C70 – C270	C992	S100 – S130	S75

HYDRAULIC ANGLE PLOW (HYDRAULIC SNOW WINGS)

Efficiently plow snow off city roads in urban and suburban areas. Designed to withstand harsh conditions, tackle any winter obstacle with a Hydraulic Angle Plow attachment.

Standard Features:
■ CHT 400 steel structure
■ Trip mechanism
■ Slide on Teflon plate
■ 30° reverse capacity

Available Options:
■ Solenoid 12 volts

Tractor Requirements:
■ Winter tires
■ Counterweight

Specification	WAP-610-10
Clearing Width (Closed)	65.5” (1663 mm)
Clearing Width (Open)	120.5” (3060 mm)
Height	28” (711 mm)
H.D. Snow Gates	25” (635 mm)
Weight	1405 lb (637 kg)
Power Requirements	70 HP (52 kW)
Tractor Fit (Holder)	S75 – S100 – S130

BRINE SPRAYER

If you have brine to spread or are tasked with cleaning sports grounds and small parks, the brine sprayer attachment is for you.

Standard Features:
■ Double spray bar system
■ Baffle ball surge control
■ Fast fill system
■ Tri-zone spray selection
■ Auto drain sump base
■ Built-in fork slots
■ Rust armor stainless frame

Available Options:
■ Storage stands & lights
■ Securing bar
■ Pump options: high flow 12-volt, gas or hydraulic

Tractor Requirements:
■ Over-engine platform

Specification	BSP-250-75
Total Volume	250 gal (946 L)
Length	81” (2057 mm)
Width	48” (1219 mm)
Height	39” (991 mm)
Weight (Empty)	475 lb (215 kg)
Frame Type	Stainless Steel
Hose Length	100’ (30 m)
Mounting	4 Tie-Down Slots
Tank Type	Single-Piece Roto Mold HDPE
Spray Gun Type	Adjustable Jet/Fan
Power Requirements	70 HP – 130 HP (52 kW – 97 kW)
Tractor Fit (Holder)	S75 – S100 – S130

HYDRAULIC POWER ARM Attachments

FLAIL HEAD

The flail head attachment will easily maneuver around obstacles to control overgrown grass and vegetation.

Standard Features:
■ Quick change system
■ Direct drive via axial piston engine
■ Support roller for cutting height regulation
■ Double stone guard at the front (plastic baffle plates & chain guard)
■ Simple impact protection at the back (rubber apron)

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-157-XX

Model	HMF-039-02
Grass Trim Height	Cut up to Ø 0.78” (20 mm)
Working Width	31.5” (800 mm)
Number of Blades	32 Y-blades
Weight	approx. 363 lb (165 kg)

The flail head attachment [HMF-039-02] is compatible with the PAR-157 hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130

Karcher hydraulic power arm branch cutter attachment for municipal equipment

Branch Cutters

The branch cutter attachment was created to allow operators to swiftly and easily remove weeds, thick grass and greenery from parks, waterfronts, suburban areas and more.

Standard Features:
■ Quick change system

Available Options:
■ Additional sizes available

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-320 & PAR-157-XX

Model	BCH-059-01
Cutting Width	4’9” (1.5 m)
Number of Blades	19
Strokes per Minute	60
Cutting Capacity	1.57” (40 mm)
Minimum Flow	13.2 gpm (50 L/min)
Pressure	2611 psi (180 bar)

Model	BCH-053-01
Cutting Width	4.42’ (1347 mm)
Cuttable Branch Size	max. 3.93’ (1197 mm)
Strokes per Minute	100
Weight	410 lb (186 kg)

The branch cutter attachment [MSH-058-01] is compatible with all hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03	PAR-320-01
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130	C270 – C70 – S75 – S100 – S130

Karcher hydraulic power arm hedge trimmer attachment for municipal equipment

HEDGE TRIMMERS

This attachment effortlessly cuts through brush in order to maintain greenery surrounding parks, cities, suburban areas and recreational areas.

Standard Features:
■ Quick change system

Available Options:
■ Additional sizes available

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-320 & PAR-157-XX

Model	BCH-059-01
Cutting Width	4’9” (1.5 m)
Number of Blades	19
Strokes per Minute	60
Cutting Capacity	1.57” (40 mm)
Minimum Flow	13.2 gpm (50 L/min)
Pressure	2611 psi (180 bar)

Model	BCH-053-01
Cutting Width	4.42’ (1347 mm)
Cuttable Branch Size	max. 3.93’ (1197 mm)
Strokes per Minute	100
Weight	410 lb (186 kg)

The hedge trimmer attachment models [HCH-067-01 & HCH-059-01] are compatible with all hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03	PAR-320-01
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130	C270 – C70 – S75 – S100 – S130

QUADSAW

The quadsaw attachment smoothly cuts tree and hedge branches, making city beautification and pathway maintenance even easier.

Standard Features:
■ Low noise levels
■ High speed belt drive
■ Tungsten carbide tipped blades

Available Options:
■ Manual quick release kit
■ Hydraulic quick release kit
■ Trisaw also available – (3 circular saw blades)

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-320-01

ROTARY FINISHING HEAD

Mow overgrown grass, brush and greenery with ease using the rotary finishing head attachment for your hydraulic power head.

Standard Features:
■ Branch guide
■ Front rubber flap
■ High speed belt drive
■ (6) blade X (3) rotor fine cut cutting system

Available Options:
■ Manual quick release kit
■ Hydraulic quick release kit

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-320-01

Model	MRH-050-01
Cutting Width	4’2” (1.3 m)
Number of Blades	18
Cutting Capacity	1.81” (30 mm)
Minimum Flow	11.88 gpm (45 L/min)
Pressure	2610 psi (180 bar)

DITCH DIGGER

Sever tree roots, create drainage ditches and more for your project using the ditch digger attachment.

Standard Features:
■ Quick change system
■ Adjustable discharge center

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-57-XX

Model	DDH-020-01
Oil Quantity Required	15.85 gpm @ 2900 psi (60 L/min @ 200 bar)
Cutting Disc Diameter	19.68” (500 mm)
Number of Blades	4
Weight	286 lb (129 kg)

The ditch digger attachment [DDH-020-01] is compatible with the PAR-157 hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130

STUMP GRINDER

Increase operator productivity by using a stump grinder attachment for your hydraulic power head to break down tree stumps.

Standard Features:
■ Quick change system
■ Drive via axial piston engine
■ Robust transmission gear (without chain)

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-157-XX

Model	SGH-021-01
Milling Disc Diameter	21.65” (549 mm)
Number of Teeth	20 Carbide Tips
Working Depth	15.75” (400 mm)
Weight	132 lb (60 kg)
Power	33.5 HP (25 kW)
Oil Quantity Required	14.5 gpm @ 2900 psi (55 L/min @ 200 bar)

The stump grinder attachment [SGH-021-01] is compatible with the PAR-157 hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130

EARTH AUGER

You can expect efficiency and precision when digging, planting and installing during projects using the earth auger attachment for your hydraulic power arm.

Standard Features:
■ Quick change system with one piece auger
■ Existing drills can be used
■ Drill connection Stihl drill BT 360

Tractor Requirements:
■ Multi-purpose hydraulic power arm (boom arm) PAR-157-XX

Model	EAH-028-01
Drilling Depth	27” (700 mm)
Oil Quantity Required	15.85 gpm @ 2900 psi (60 L/min @ 200 bar)
Diameter	5.9” (150 mm)
Weight	132 lb (60 kg)
Speed	200 min⁻¹
Torque	300 Nm
Capacity	14 HP (11 kW)

The earth auger attachment [EAH-028-01] is compatible with the PAR-157 hydraulic power arm models.

Specification	PAR-157-01	PAR-157-02	PAR-157-03
TRACTOR FIT (HOLDER)	S75 – S100 – S130	C70 – C270	S75 – S100 – S130

SPecialty Tractor Attachments

Weed Removal, Irrigation, Landscaping & Construction Applications

Karcher hot water weed killer attachment for municipal sweepers in use

HOT WATER WEED KILLER [For Sweepers]

Kills the parts of the weeds above ground and the roots below with hot water.

MIC 42 Sweeper
MC 80 Sweeper
MC 130 Sweeper (Upgraded to the MC 150)
MC 250 Sweeper

*Contact your Americhem representative for more details on what size to choose for your sweeper.

Karcher hot water weed killer attachment for municipal articulating tractors

Hot Water Weed Killer [For Tractors]

Kills the parts of the weeds above ground and the roots below with hot water.

Standard Features:
■ Special hot water nozzles for homogeneous application
■ Storage via a maintenance-free spring element
■ An impeller for optimal ground-surface adaptation
■ Tilt adjustment
■ Storage cart w/ wheels for easy mounting

Available Options:
■ Lateral Nozzles (mounting on both sides possible)

Tractor Requirements:
■ Oil demand 1.3 GPM (5 L/min)

Model	HWK-317-01
Length	30” (770 mm)
Total Width	47” (1200 mm)
Working Width	39” (1000 mm)
Height	23” (540 mm)
Weight	132 lb (60 kg)
Material	Stainless Steel V2A
Power Requirements	45 HP – 130 HP (33 kW – 97 kW)
Tractor Fit (Holder)	C70 – C270 – C992 – S75 – S100 – S130

Karcher hydraulic front spray bar attachment for municipal equipment

HYDRAULIC SWIVELING FRONT SPRAY BAR

This attachment helps to expedite your watering projects by giving operators the flexibility to adjust the spray bar height as well as a support leg to maintain accuracy. A telescopic extension is an available option as well.

Standard Features:
■ Hydraulic angling (L/R)
■ Manual height adjustment
■ Front adapter plate holder [C250, C270, C480, C992]
■ Flat-face couplings
■ Support leg

Available Options:
■ Spray guard
■ Side nozzles
■ 20″ (500 mm) L/R telescopic extension

Tractor Requirements:
■ Cat I (3 point hitch) – 1 set of hydraulic quick couplings (double acting)

Other Requirements:
■ Water tank system WTS-171-02 or WTS-171-03

Model	SPB-059-01	SPB-070-01
Total Width	59” (1500 mm)	70” (1778 mm)
Working Width 30°	51” (1300 mm)	62” (1574 mm)
Length	19.6” (550 mm)
Height	15.7” (400 mm)
Weight	154 lb (70 kg)	165 lb (75 kg)
Bar Material	Stainless Steel
Power Requirements	3.9 gpm (15 L/min)
Water Pressure (Medium)	725 psi @ 21 gal (50 bar @ 80 L)
Water Pressure (High)	1883 psi @ 21 gal (130 bar @ 80 L)
Tractor Fit (Holder)	C70 – C270	C70 – C270 – C992 – S75 – S100 – S130

TRENCH AXE

Use this powerful tool to dig trenches for municipal and recreational projects such as installing drainage systems, road construction work and more.

Holder S100/130 Tractor

Standard Features:
■ Side auger
■ Heavy duty solid steel nose
■ Adjustable chain tension
■ Crumb scraper bar

Available Options:
■ Bullet tooth chain

Tractor Requirements:
■ 3-point hitch external control

Model	TRA-036-01
Trencher Depth	36” (914 mm)
Trencher Width	4” – 6” (101 mm – 152 mm)
Weight	810 lb (367 kg)
Main Shaft Size	2 – 9/16” Solid Hardened Steel
Over Torque Protection	Hydraulic Relief
Drive Type	Planetary
Power Requirements	40 HP – 100 HP (30 kW – 74 kW)
Tractor Fit (Holder)	C992 – S100 – S130

STUMP GRINDER

Easily remove unsightly tree stumps for your landscaping and lawn care needs.

Standard Features:
■ Flow control cutting pass speed
■ Rugged gearbox
■ Bolt-on teeth design
■ Heavy duty stabilizer base
■ Floating deflector

Available Options:
■ External control

Tractor Requirements:
■ Cat II (3-point hitch)

Model	STG-024-01
Length	49” (1244 mm)
Width	42” (1066 mm)
Rotor Size	24” (609 mm)
Number of Teeth	34
Tooth Construction	S1000
Cutting Wheel Speed	810 RPM
Cutting Height	18” (457 mm) (Above Ground)
Cutting Depth	8” (203 mm) (Below Ground)
Swing Arc	65°
Weight	624 lb (283 kg)
Max. Engine HP	65 HP (48 kW)
Max. PTO HP	55 HP (41 kW)
Power Requirements	25 HP – 55 HP (18 kW – 41 kW)
Tractor Fit (Holder)	C270 – C70 – C992 – S100 – S130

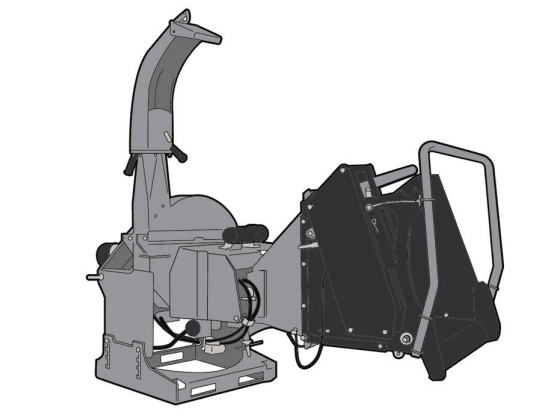

WOOD CHIPPER

Conveniently break down tree debris and branches into smaller, manageable pieces.

Standard Features:
■ 360° adjustable chute
■ Adjustable ski base
■ Dual active rollers
■ Fold up feed hopper
■ Safety control bar
■ Shearbolt protected PTO drivetrain

Available Options:
■ Reversible rotor knives

Tractor Requirements:
■ Cat II – quick hitch compatible

Model	WCH-005-01
Length (Open)	80” (2032 mm)
Length (Folded)	62” (1575 mm)
Width (Open)	67” (1702 mm)
Width (Folded)	61” (1549 mm)
Height (Open)	74” (1879 mm)
Height (Folded)	74” (1879 mm)
Chipping Capacity	5” (127 mm)
Drive System	PTO Direct Drive
Weight	845 lb (383 kg)
Chipper Type	Disc
Feed System	Dual Hydraulic Roller Feed
Number of Chipper Knives	4
Discharge Chute Rotation	360°
RPM	540 – 1000
Hydraulic Flow	3 gpm – 6 gpm (12 L/min – 23 L/min)
Power Requirements	40 HP – 55 HP (30 kW – 41 kW)
Tractor Fit (Holder)	C270 – C70 – C992 – S100 – S130

SKIDDING WINCH

Gain heavy duty pulling power for large debris and trees using the skidding winch attachment.

Standard Features:
■ 2 choker chains
■ 2 key hole sliders
■ Tow bars
■ Trailer hitch
■ Removable clutch assembly
■ Snatch block pulley system
■ Rope controlled brake/clutch system
■ Shearbolt protected PTO drivetrain

Available Options:
■ 60″ (1524 mm) or 84″ (2133 mm) synthetic choker
■ 90″ (2286 mm) choker chain
■ Logging tongs
■ Nylon chainsaw holder
■ Self-releasing directional pulley
■ Synthetic rope

Tractor Requirements:
■ CAT I | CAT II

Model	SKW-080-01
Length	28” (711 mm)
Width	51” (1295 mm)
Height	79” (2006 mm)
Pulling Capacity	11,000 lb (4989 kg)
Winch Type	Mechanical Dry Disc Clutch
Line Speed	98 ft/min – 253 ft/min (30 m/min – 77 m/min)
Cable Type	Steel
Cable Length	165’ (50 m)
Cable Diameter	7/16” (11 mm)
Choker Chains	2
PTO Input Speed	540 RPM
Weight	796 lb (361 kg)
Power Requirements	50 HP – 90 HP (37 kW – 67 kW)
Tractor Fit (Holder)	C270 – C70 – C992 – S100 – S130

Still Have Some Questions Left?

Call us for a Consultation at (800) 262-4360

If you require a specific attachment, contact the Americhem team and we can find the best tool for your job.

demo event

Municipal Equipment Attachments

Karcher Municipal Sweeper and Articulating Tractor Attachments

All Season Attachments

HYDRAULIC SWEEPER

PTO DRIVEN SWEEPER

WATER TANKS

Summer Attachments

Landscaping & Lawn Care Applications

ROTARY MOWER DECK

TRI-DECK MOWER

FLAIL MOWER

TURBINE BLOWER

HEAVY DUTY MULCHER

COLD PLANER

HYDRAULIC WATERING ARM

HYDRAULIC POWER ARM (BOOM ARM)

HYDRAULIC SWEEPER WITH PICK-UP

VACUUM SWEEPER

FORKLIFT & LOADER BUCKET

Front Roller Brush

Weed Brush (With and Without Intake)

4.5m Manual Suction Hose

Scrubbing Device

Washing Systems

Pressure Washer Cleaner

Sweeping Container

Winter Tractor Attachments

Snow & Ice Removal Applications

SINGLE AUGER BLOWER

DOUBLE AUGER BOX BLOWER

RIBBON BLOWER

ANGLE PLOW

FOLDING V-PLOW

PLOW-BROOM COMBO

DROP SPREADER

BROADCAST SPREADER

DUMP BODY

HYDRAULIC ANGLE PLOW (HYDRAULIC SNOW WINGS)

BRINE SPRAYER

HYDRAULIC POWER ARM Attachments

FLAIL HEAD

Branch Cutters

HEDGE TRIMMERS

QUADSAW

ROTARY FINISHING HEAD

DITCH DIGGER

STUMP GRINDER

EARTH AUGER

SPecialty Tractor Attachments

Weed Removal, Irrigation, Landscaping & Construction Applications

HOT WATER WEED KILLER [For Sweepers]

Hot Water Weed Killer [For Tractors]

HYDRAULIC SWIVELING FRONT SPRAY BAR

TRENCH AXE

STUMP GRINDER

WOOD CHIPPER

SKIDDING WINCH

Still Have Some Questions Left?

Call us for a Consultation at (800) 262-4360
